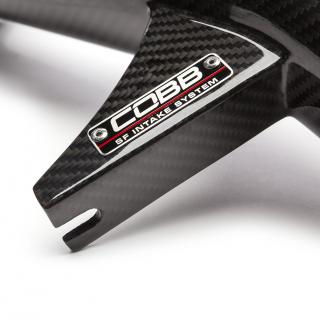

Nissan Redline Carbon Fiber Big SF Intake System GT-R 2008-2018
California Residents: Prop 65 Warning
This part is legal for sale and use on Emissions Controlled Vehicles in all 50 states when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number:
Same Big SF design in a new lightweight, great looking material! Works from stock to big power builds. In stock form, the R35 ECU measures airflow using a Mass Airflow (MAF) sensor located in the stock intake system. As modifications add up and increase power, the airflow can increase to the point that it exceeds the MAF sensor"s maximum capacity, preventing the ECU from accurately measuring air mass, and thus unable to deliver the appropriate amount of fuel. The Redline Carbon Fiber Big SF Intake increases the inner diameter of the intake tubing, increasing the cross section of the intake and allowing the MAF sensor to read lower for the same amount of ingested air. This gives the sensor the necessary headroom to read accurately for airflow higher than the stock system was designed for. COBB Tuning has used the this intake to support builds of over 600HP and 600TQ at the wheels, gains of 40% over a stock GT-R!
Increased Induction Sound Enjoy the increased snarl from your engine and hear the turbo spool more clearly with the addition of the COBB Tuning Redline Carbon Fiber Big SF Intake system. Turbocharger induction noise and bypass valve venting sound is much more audible using this intake system.
Easy to Install The Redline Carbon Fiber Big SF Intake was designed to be easy to install without having to modify your car or remove the bumper skin. Installation requires no cutting or trimming or removal of the bumper skin or bumper support and can be completed with simple hand tools. Simply remove the stock airbox and bolt the intake into place in just minutes!
Free Off-The-Shelf Calibrations Changing the calibration of the MAF sensor necessitates tuning changes to recalibrate the ECU. COBB Tuning has you covered here as well with a set of free Accessport Big SF Intake Off-The-Shelf maps for all supported GT-R Stage1, Stage2, and Stage3 vehicles. Big SF Intake maps are available for download from the Nissan GT-R Accessport Map Database.
Carbon fiber parts are hand laid, slight imperfections or weave pattern variances can be expected.

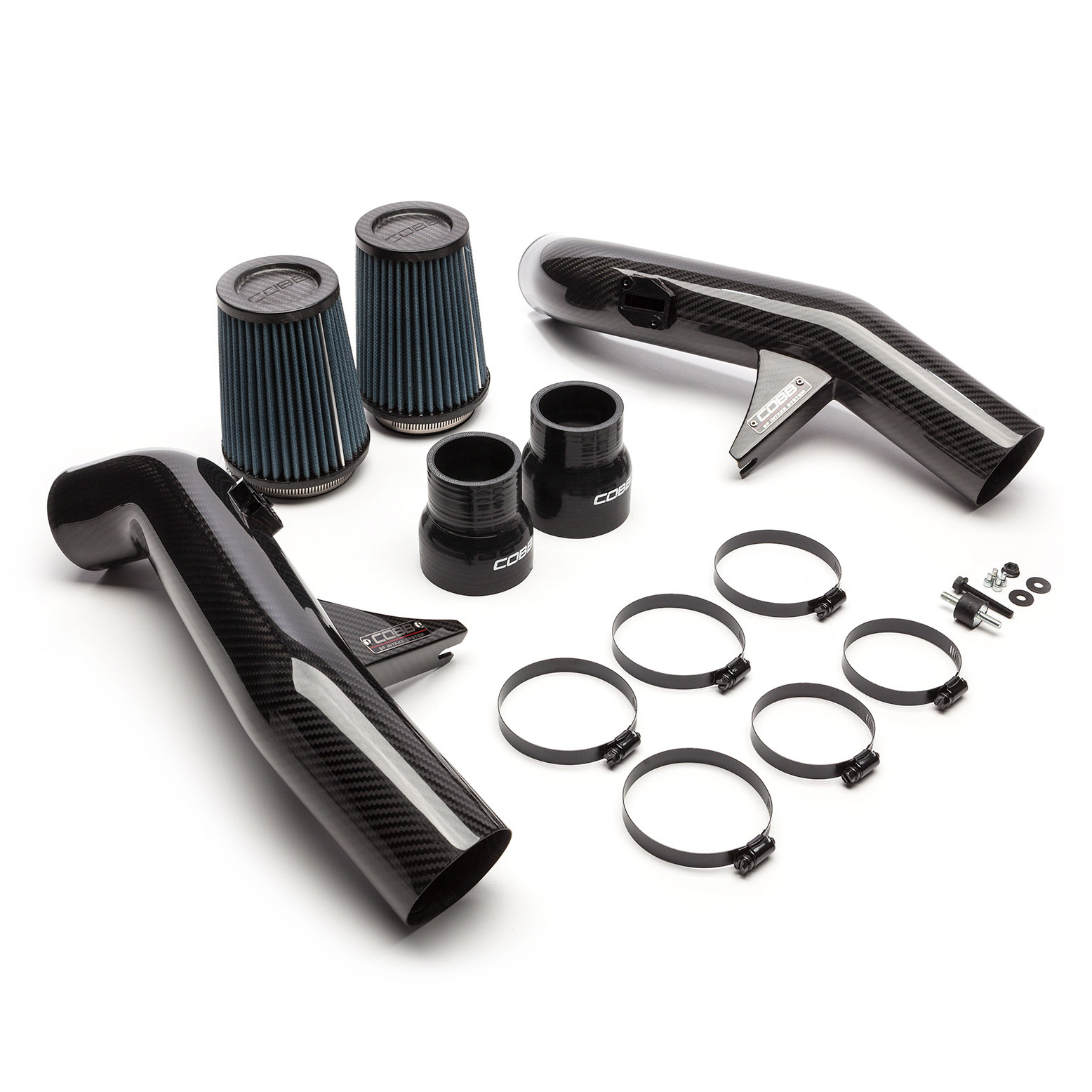

Constructed of 3.0-inch diameter carbon fiber tubing with K&N cone filter elements and 3-ply silicone couplers, the Redline Carbon Fiber Big SF Intake System opens the door to huge power gains, but is equally at home on a stock GT-R using our "Big SF" Off-The-Shelf maps. Excellent starting point for those that intend significant upgrades down the road.

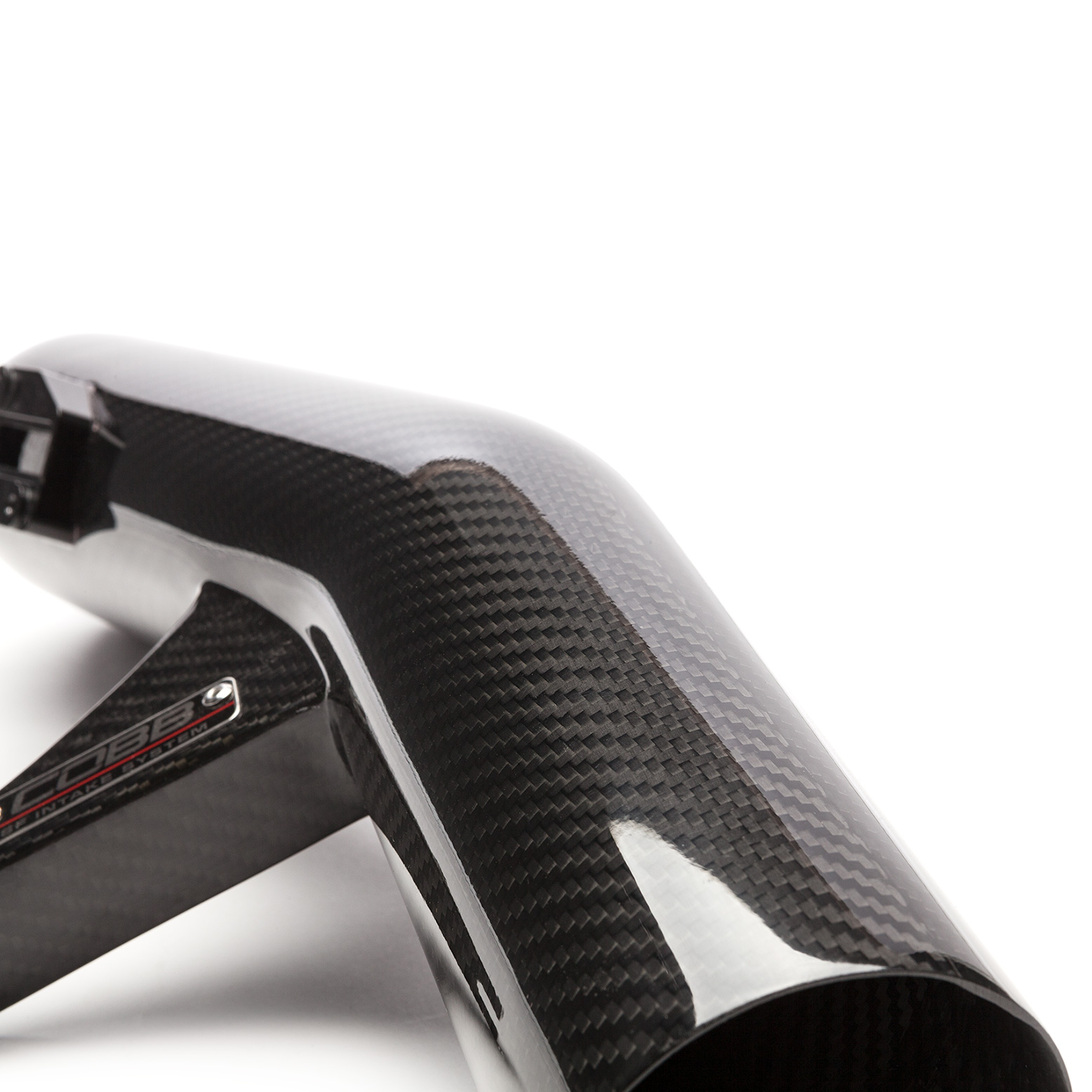

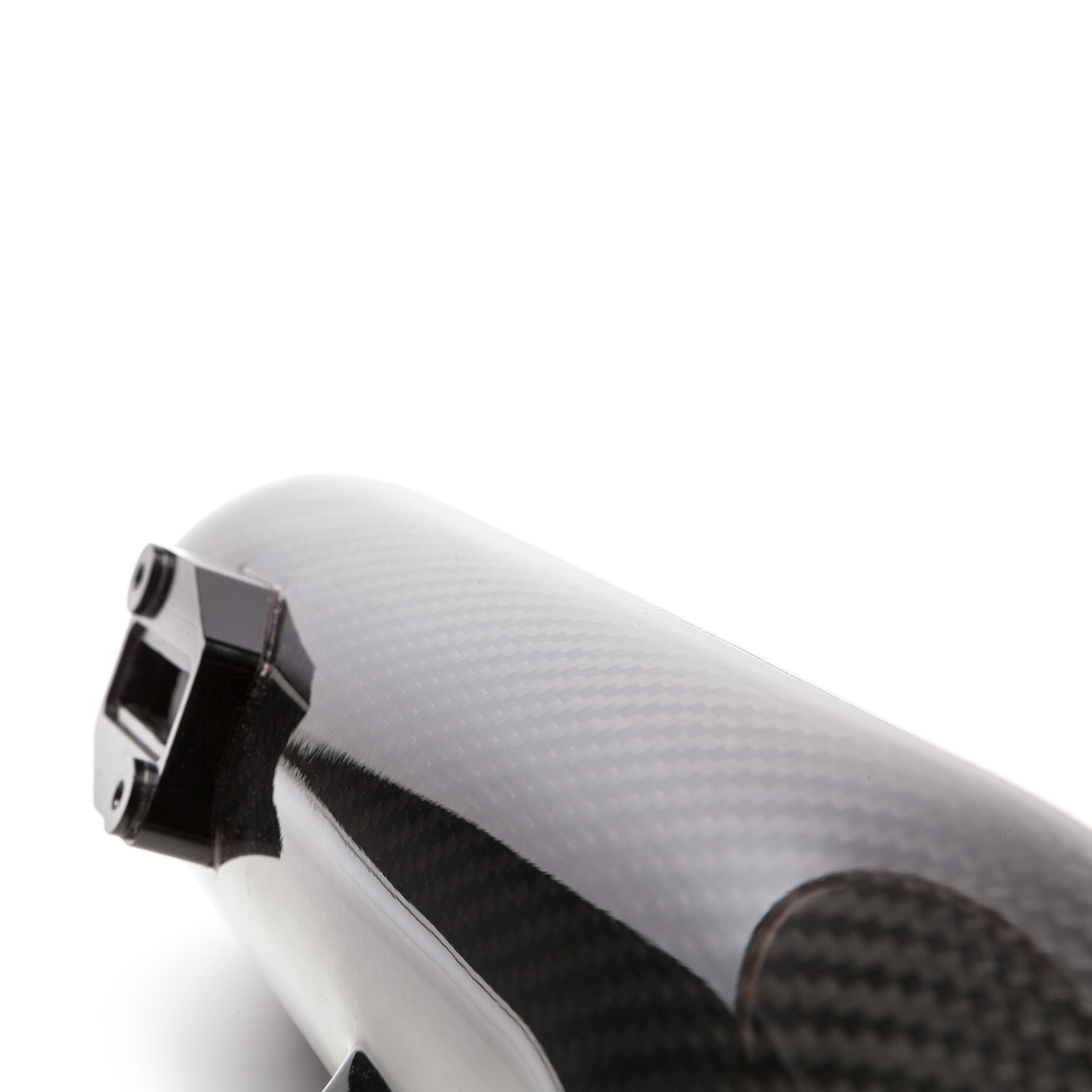

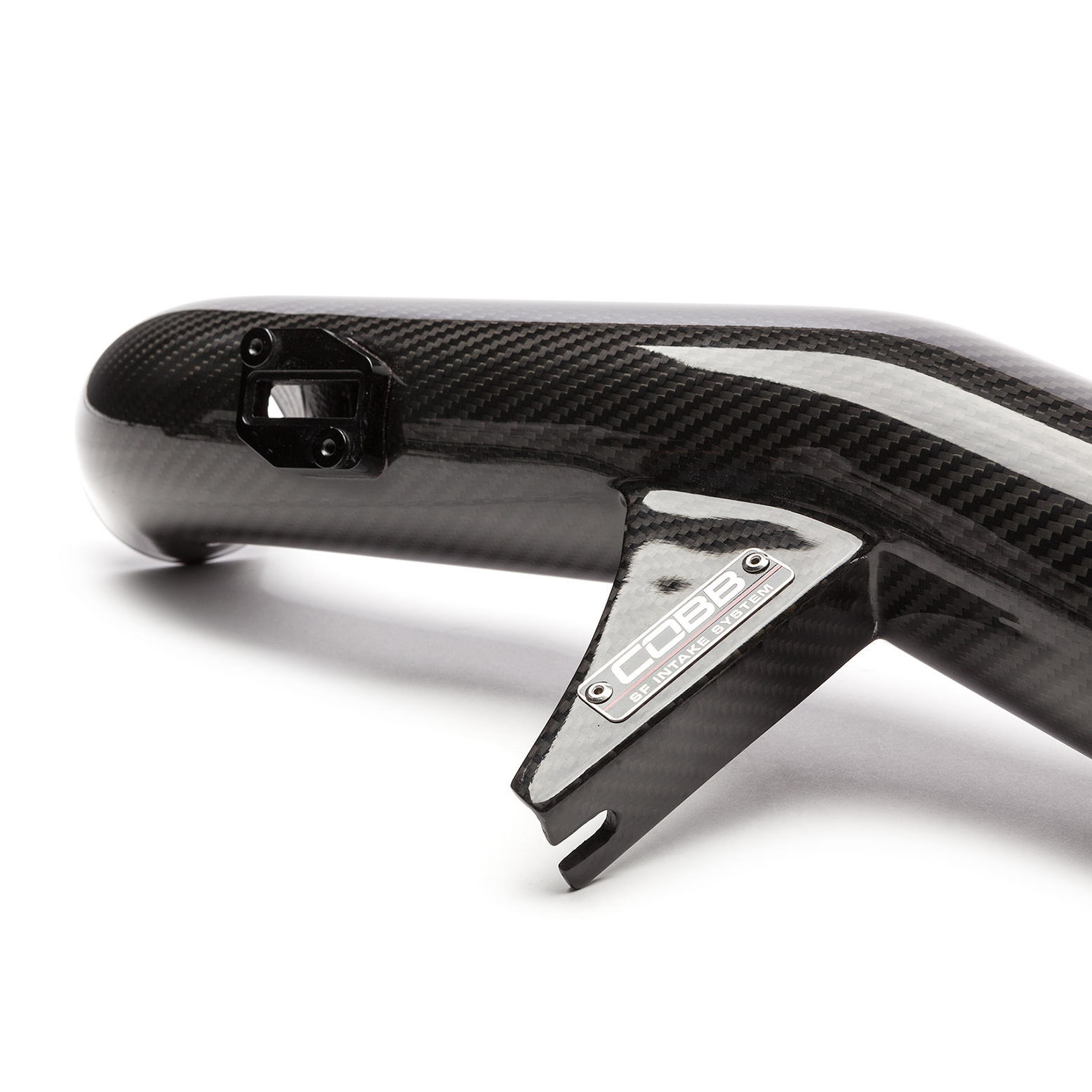

- 3" Carbon Fiber Tubing
- 3-Ply Steel Reinforced Silicone
- Black E-Coated 304 Stainless Steel Clamps
- No Cutting or Trimming Required

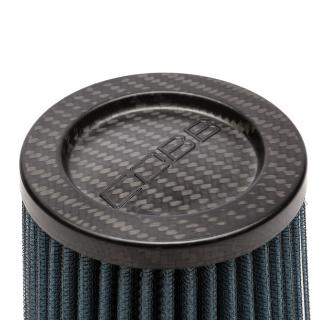

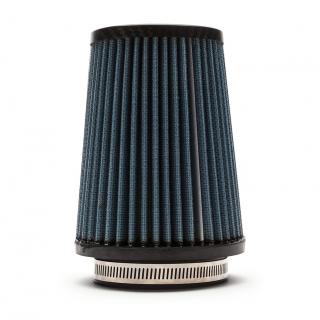

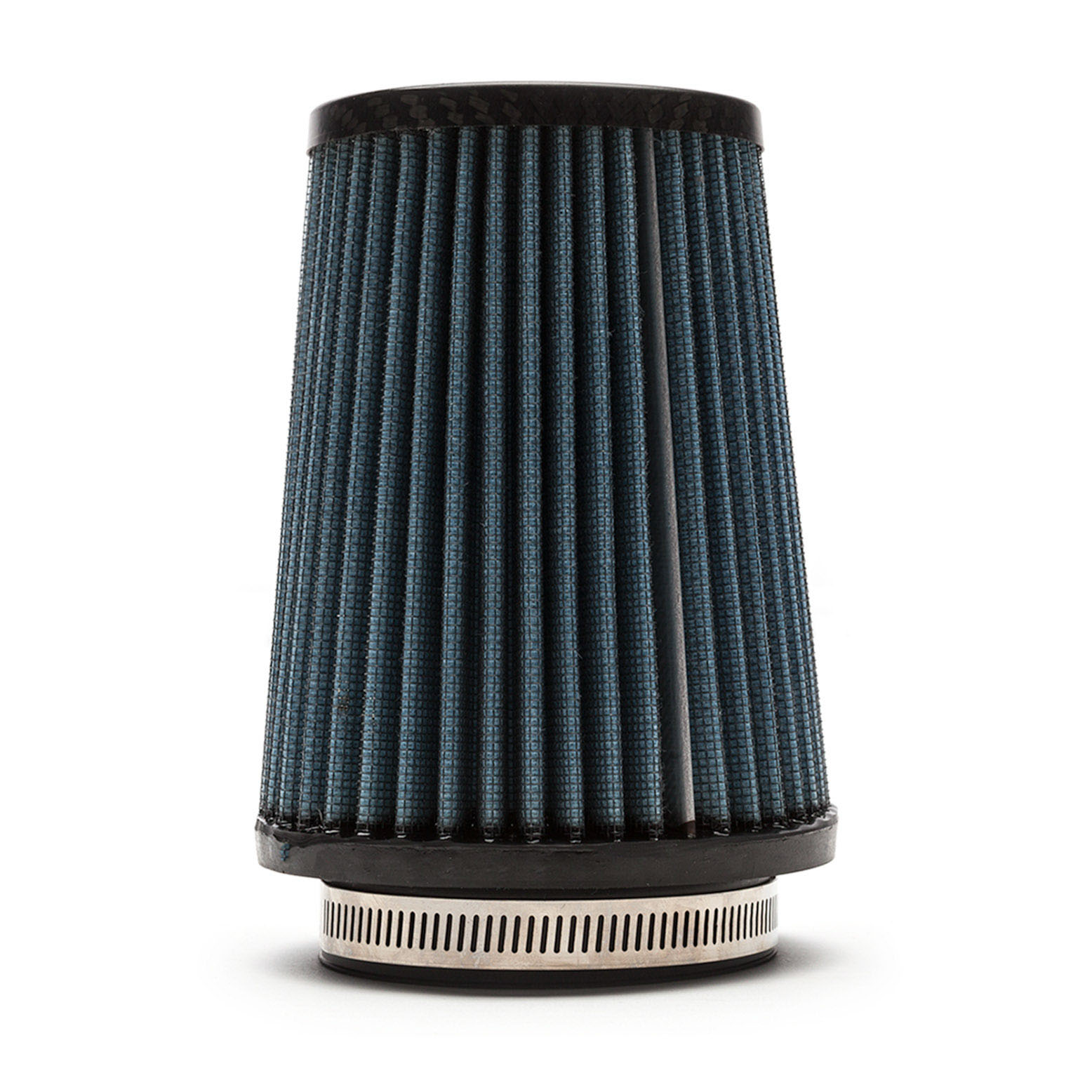

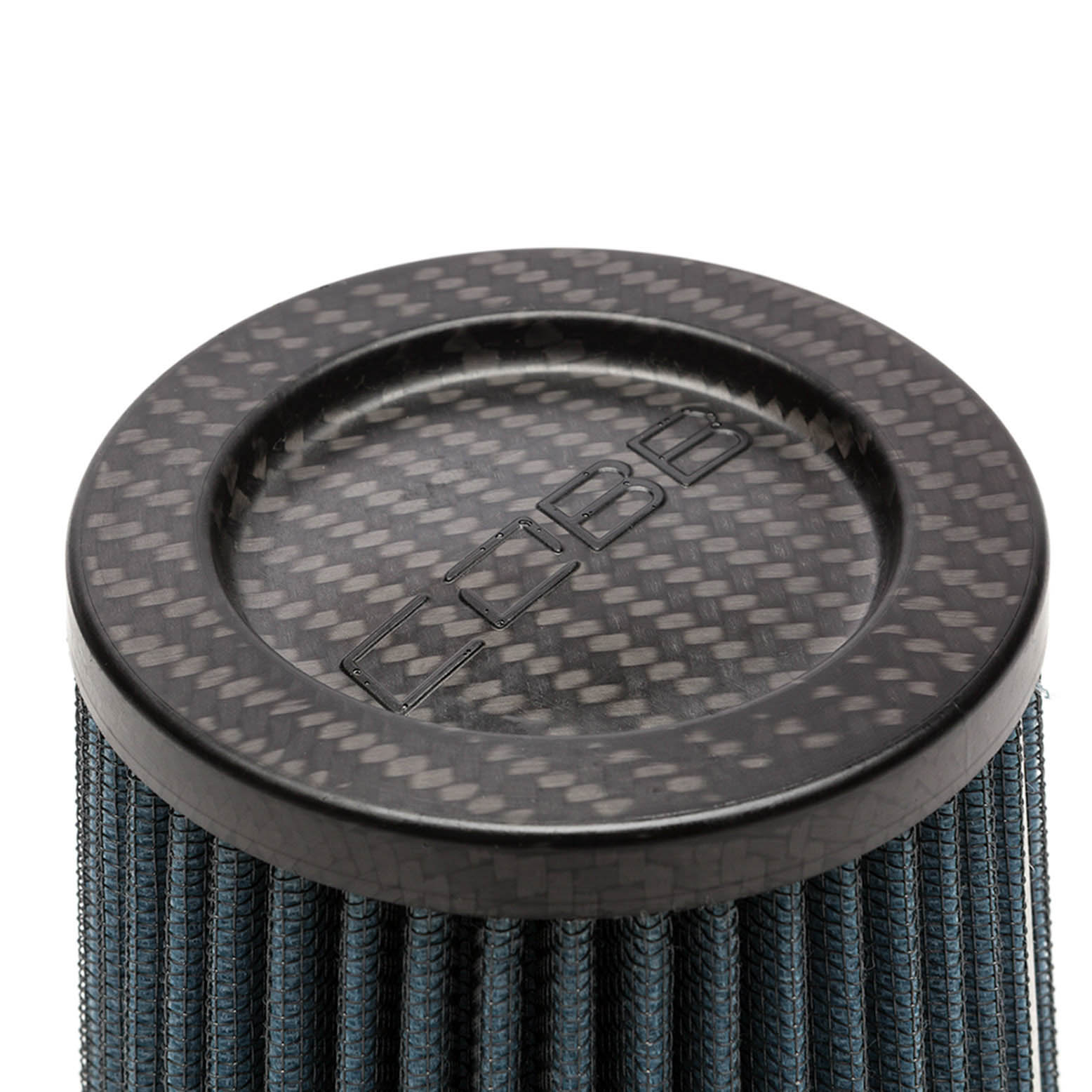

- Pre-Oiled, Cleanable, Reusable Custom Filter Element
