2015-2021 Subaru WRX STI NexGen Power Packages and Maps

With this release we are extremely excited to announce the next step in our revised “NexGen” Power Packages and accompanying Off The Shelf Maps for the Subaru platform, NexGen Stage 2 Power Packages for the USDM 2015-2021 Subaru WRX STI.  In our never ending strive to provide additional upgrade options for owners of these vehicles, the Subaru Experts here at COBB took to our dyno to define our emissions compliant, NexGen Stage 2 Power Package utilizing products from our catalog that have an existing CARB Executive Order (EO) or have a known path towards obtaining one.  What came as a result of extensive testing on the dyno, street, and even several trips to our local track are NexGen Power Packages which provide impressive power gains over the existing Stage 1 level.

These NexGen Power Packages and OTS Maps are currently emissions compliant in all 50 states and have a CARB EO issued. At this time, Stage 2 NexGen OTS Maps are available to download off the website and are also included in current Firmware on the Accessport (AP3-SUB-004).

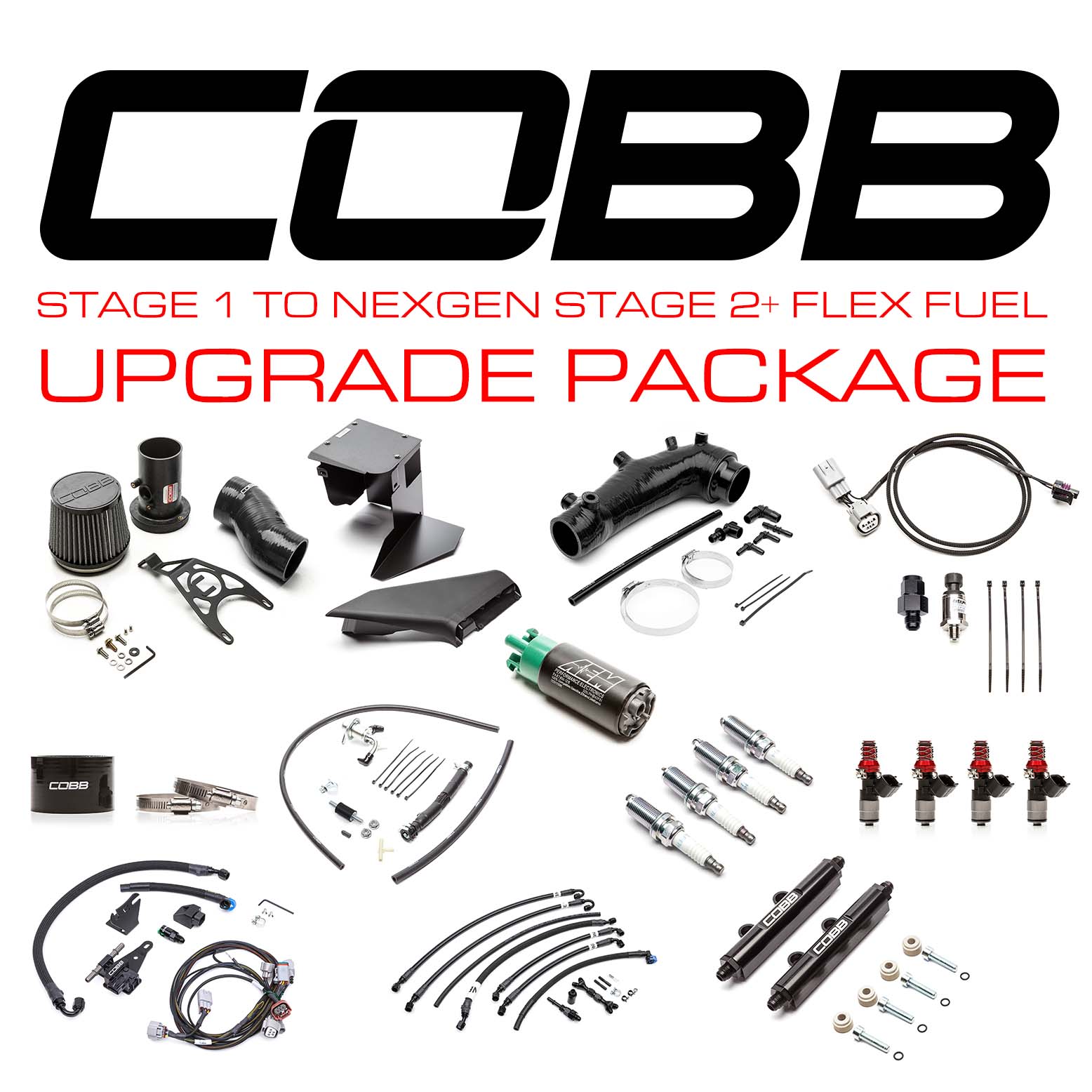

NexGen Stage 2 Power Packages

These NexGen Stage 2 Power Packages for the VA STI are offered in three flavors with the only difference being the included intake system.  The first supports all applicable model years and includes our Redline Carbon Fiber Intake while the other two include our SF Intake/Airbox combo that supports either 2015-2018 STIs or 2019-2021 STIs.  Beyond those differences, the remainder of the packages are identical and aim to both maximize the efficiency of the intake system and provide enough fuel to take full advantage of of that increased airflow.  A new set of Subaru OE Spark Plugs is also included.

SUB004NG2S2-RED_main-2
NexGen Stage 2 Redline Power Package for 2015-2021 STI
  • Accessport V3 (AP3-SUB-004)
  • COBB Redline Carbon Fiber Intake 2015-2021 STI
  • COBB Silicone Turbo Inlet V2 STI 2008-2021
  • COBB Throttle Body Coupler
  • COBB Top Feed 1050x Fuel Injectors
  • COBB High Flow Fuel Pump 05-09 LGT, 08-14 WRX, 08-21 STI
  • COBB Fuel Pressure Regulator for Fuel Rail Kit STI 2008-2021
  • COBB Fuel Rail Line Kit STI 2008-2021
  • COBB Fuel Rails STI 2008-2021
  • Subaru OE Spark Plugs
  • COBB Vehicle Badge
SUB004NG2S1_main-2
NexGen Stage 2 Power Package for 2015-2018 STI
  • Accessport V3 (AP3-SUB-004)
  • COBB SF Intake System (Black / COBB Blue)
  • COBB SF Airbox STI 2015-2018
  • COBB Silicone Turbo Inlet V2 STI 2008-2021
  • COBB Throttle Body Coupler
  • COBB Top Feed 1050x Fuel Injectors
  • COBB High Flow Fuel Pump 05-09 LGT, 08-14 WRX, 08-21 STI
  • COBB Fuel Pressure Regulator for Fuel Rail Kit STI 2008-2021
  • COBB Fuel Rail Line Kit STI 2008-2021
  • COBB Fuel Rails STI 2008-2021
  • Subaru OE Spark Plugs
  • COBB Vehicle Badge
SUB004NG2S2_main-2
NexGen Stage 2 Power Package for 2018 STI Type RA, 2019-2021 STI
  • Accessport V3 (AP3-SUB-004)
  • COBB SF Intake System (Black / COBB Blue)
  • COBB SF Airbox STI 2019-2021, STI Type RA 2018
  • COBB Silicone Turbo Inlet V2 STI 2008-2021
  • COBB Throttle Body Coupler
  • COBB Top Feed 1050x Fuel Injectors
  • COBB High Flow Fuel Pump 05-09 LGT, 08-14 WRX, 08-21 STI
  • COBB Fuel Pressure Regulator for Fuel Rail Kit STI 2008-2021
  • COBB Fuel Rail Line Kit STI 2008-2021
  • COBB Fuel Rails STI 2008-2021
  • Subaru OE Spark Plugs
  • COBB Vehicle Badge

Looking for a NexGen Power Package for your car?  Click Here for all of our NexGen Parts.


Power Gains

The question we’re all curious about is how much power can these packages produce while retaining the factory downpipe and catalytic converters. We’re happy to say that these packages and their accompanying Off The Shelf Maps are able to provide significant gains over stock and Stage 1.  For 2019-2021 STIs using 93 octane fuel, we see Maximum Gains of +21% TQ and +21% HP over stock.  Peak gains bring a 6% increase in HP and 19% increase in TQ over stock.  2015-2018 STIs on 93 octane fuel enjoy Maximum Gains of +26% TQ and +26% HP over stock while peak gains come in at +8% HP and +17% TQ over stock.

NexGen Stage 2 vs Previous Stage 2

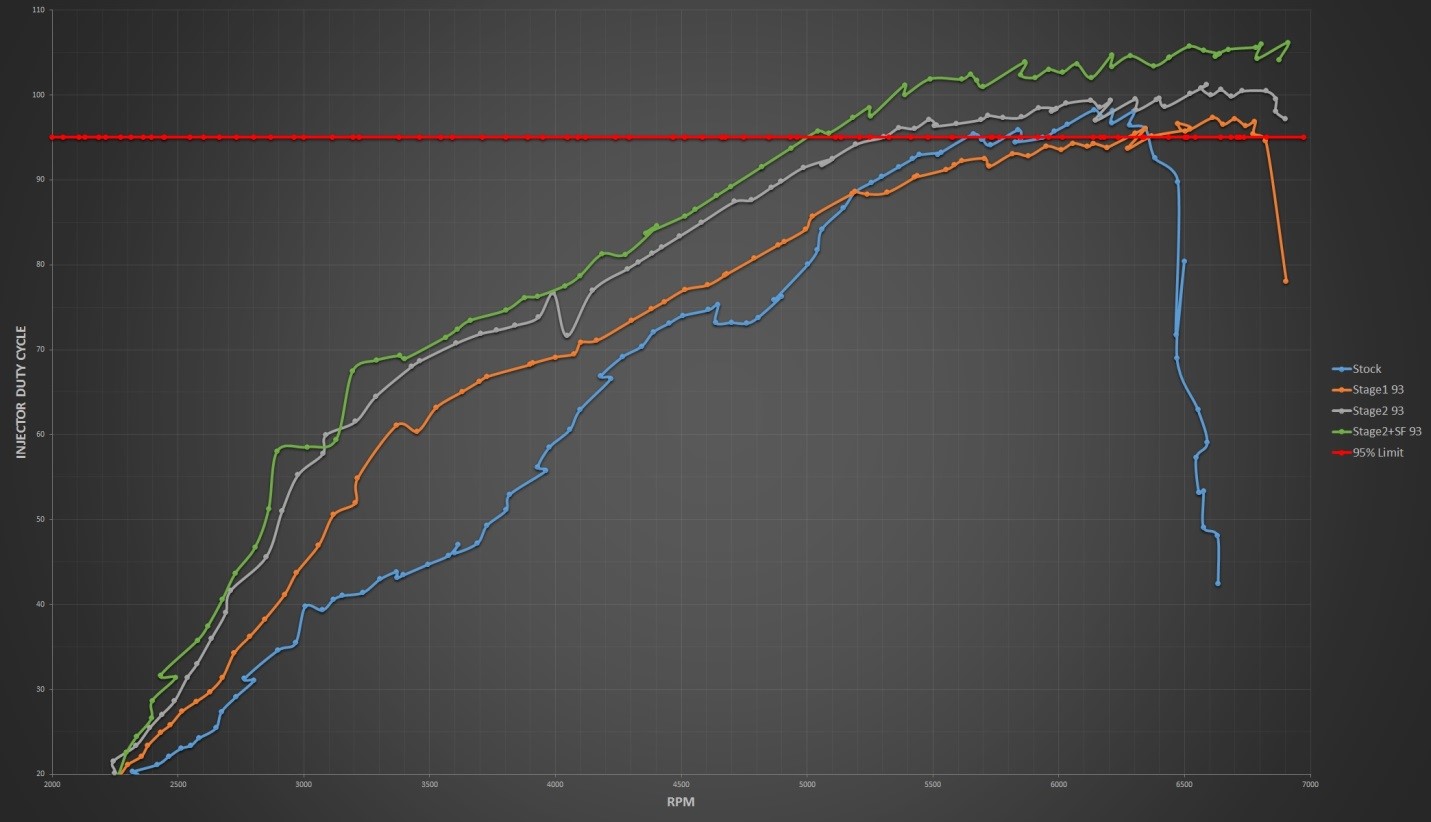

Not surprisingly , the NexGen packages produce the same low end torque gains and actually make more power up top than the outgoing Stage 2 configuration.  This is, of course, due to the additional fuel available with the upgraded pump, rails, lines, and injectors.  If you recall, our initial development of tuning support for the 2015 WRX STI immediately called out the factory fuel system as being a weak link that would need to be addressed in our Power Packages.  In the graph below you can see where Injector Duty Cycle rose well beyond the preferred limit of 95%.  With the fuel system upgrades we are able to safely make more power up top.




3 responses to “2015-2021 Subaru WRX STI NexGen Power Packages and Maps”

  1. What are the gains when comparing the stage 1+ 93 map to stage 2 next gen 93 map.

    The the post claims “impressive gains” even with the stock down pipe and cat, so what exactly does the fuel system upgrade provide without those components, when compared to stage 1+? I current have the 1+ redline which I recently installed.

  2. As someone who already owns a stage 1+ kit that is CARB compliant for a 2019 STI, are we able to purchase the remainder of the kit without having to purchase another accessport and intake if you live in California? I have been waiting for the fuel components to become CARB compliant to be able to purchase. I hope there is a solution for us that already own Cobb products. The reason I ask is because I could not purchase the sf intake and accessport separately when shipping to California. I had to purchase as a kit.

    • Hi Esteban,

      Of course. Give us a call at 866-922-3059 after you purchase the remaining parts and we can make sure you get all the EO info you need.

      Kyle@COBB
