Volkswagen, Audi

Flex Fuel Upgrade Kit for Volkswagen (MK7/MK7.5) GTI, Jetta (A7) GLI, (MK7/MK7.5) Golf R, Audi A3/S3 (8V)

$ 225.00



Availability: Ships in 24 hours
Product Code: 3V2650

California Residents: Prop 65 Warning


SEMA Certified
Free Shipping
Maps Available

Emissions
This part is legal under the provisions of EPA’s Anti-Tampering Policy. COBB Tuning has established a reasonable basis (testing results) via SEMA Garage Emissions Certification that verifies that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and EPA’s Anti-Tampering Policy.

NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY EMISSION CONTROLLED MOTOR VEHICLE.

Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending. Once testing is complete with California, and an EO number is issued, this product will be updated to 50-state legal status.

SC-COB01-0092


Description

The Flex Fuel Upgrade Kit for VW/Audi vehicles makes adding Flex Fuel functionality to your vehicle and existing ECU a breeze. This kit consists of an ethanol content sensor with bracket, bespoke wiring harness, a fuse tap harness, quick connect fuel fittings, and a super slick ECU pin locator template and pin tool. We've bundled everything you need to get on corn in minutes!

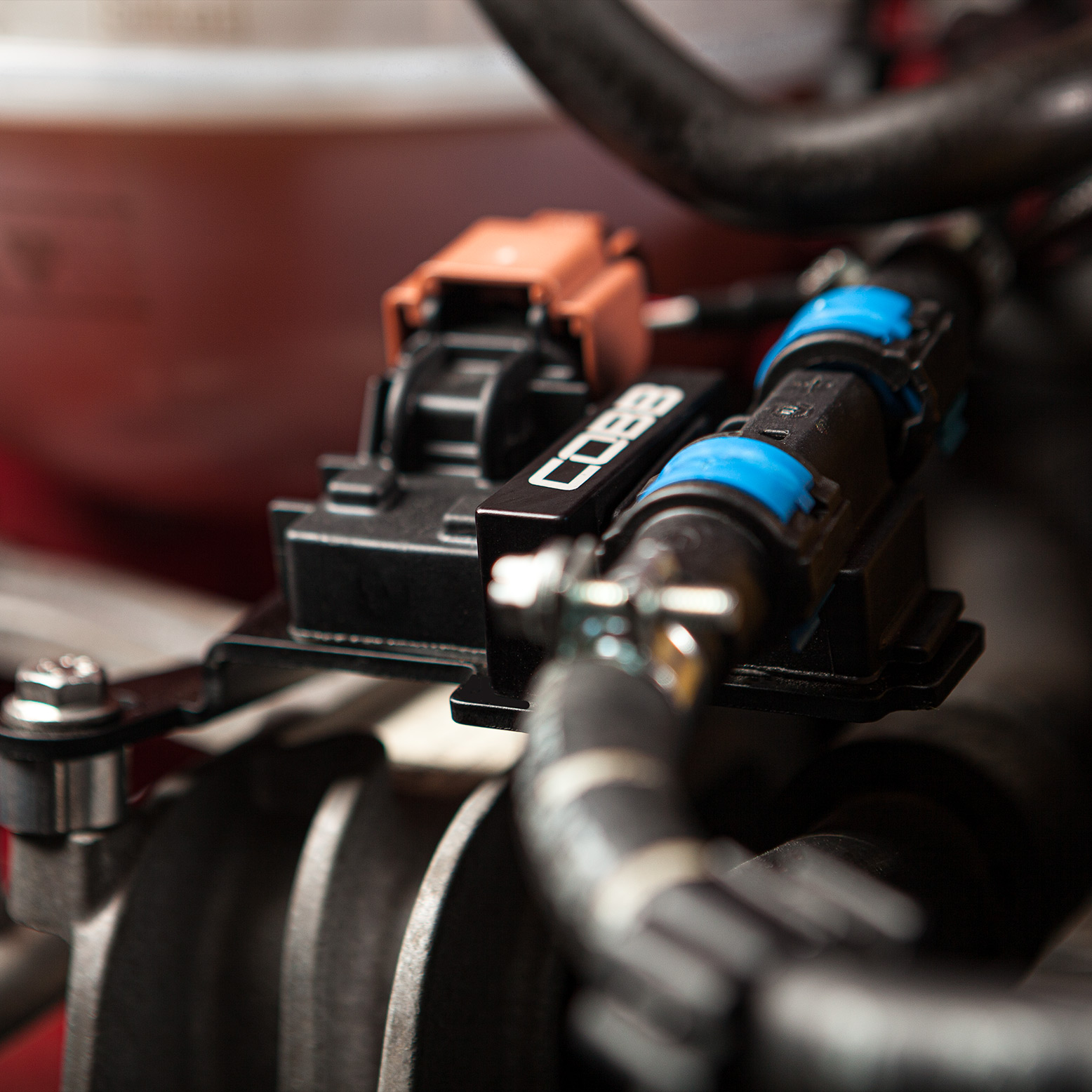

This kit seamlessly integrates with the factory ECU and the provided pin locator tool takes the guesswork out of the equation. The OE quality ethanol content sensor is secured to a bespoke powder coated aluminum bracket. Fuel is then fed to and from the sensor with pre-made fuel line with OE quick disconnect.

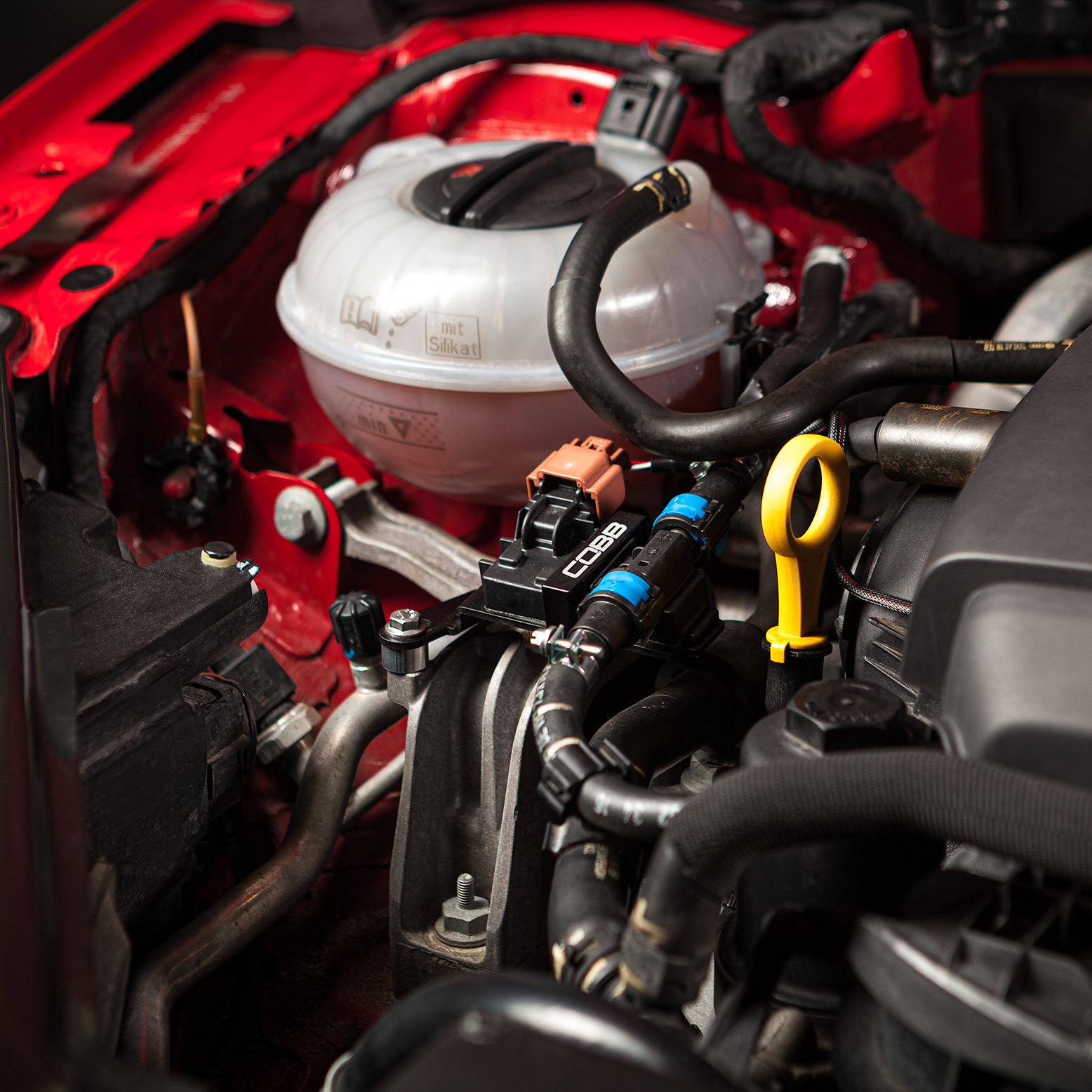

The ethanol content sensor is mounted on the passenger side engine mount and instantaneously reads the ethanol level in the fuel multiple times per second before sending that to ECU to be used by an Accessport-delivered Flex Fuel calibration.

Included as a part of this release are a set of COBB Off The Shelf Maps that are specifically calibrated for use with the Stage 1 package. All maps have been optimized for use with a completely stock fuel system, aside from the installed COBB Ethanol Sensor Kit. As such, they are configured to produce maximum power at an E30 blend. Any ethanol concentration beyond that level will result in a custom COBB DTC (COB13) and a reduction in power. Reducing the ethanol content to E30, or lower, and resetting the ECU will clear the DTC.

For more information, follow this link to find your specific vehicle: MAP NOTES.

Upgrade Kit is for USDM models only and requires use of either COBB Flex Fuel OTS map or custom tune from an authorized protuner.



Why?

Our COBB Tuning Flex Fuel Upgrade Kit for VW/Audi measures the ethanol content level of the fuel being pumped into your engine and then sends that data to the ECU to be used in a Flex Fuel calibration.


Features
Flex Fuel Upgrade Kit for Volkswagen (MK7/MK7.5) GTI, Jetta (A7) GLI, (MK7/MK7.5) Golf R, Audi A3/S3 (8V)

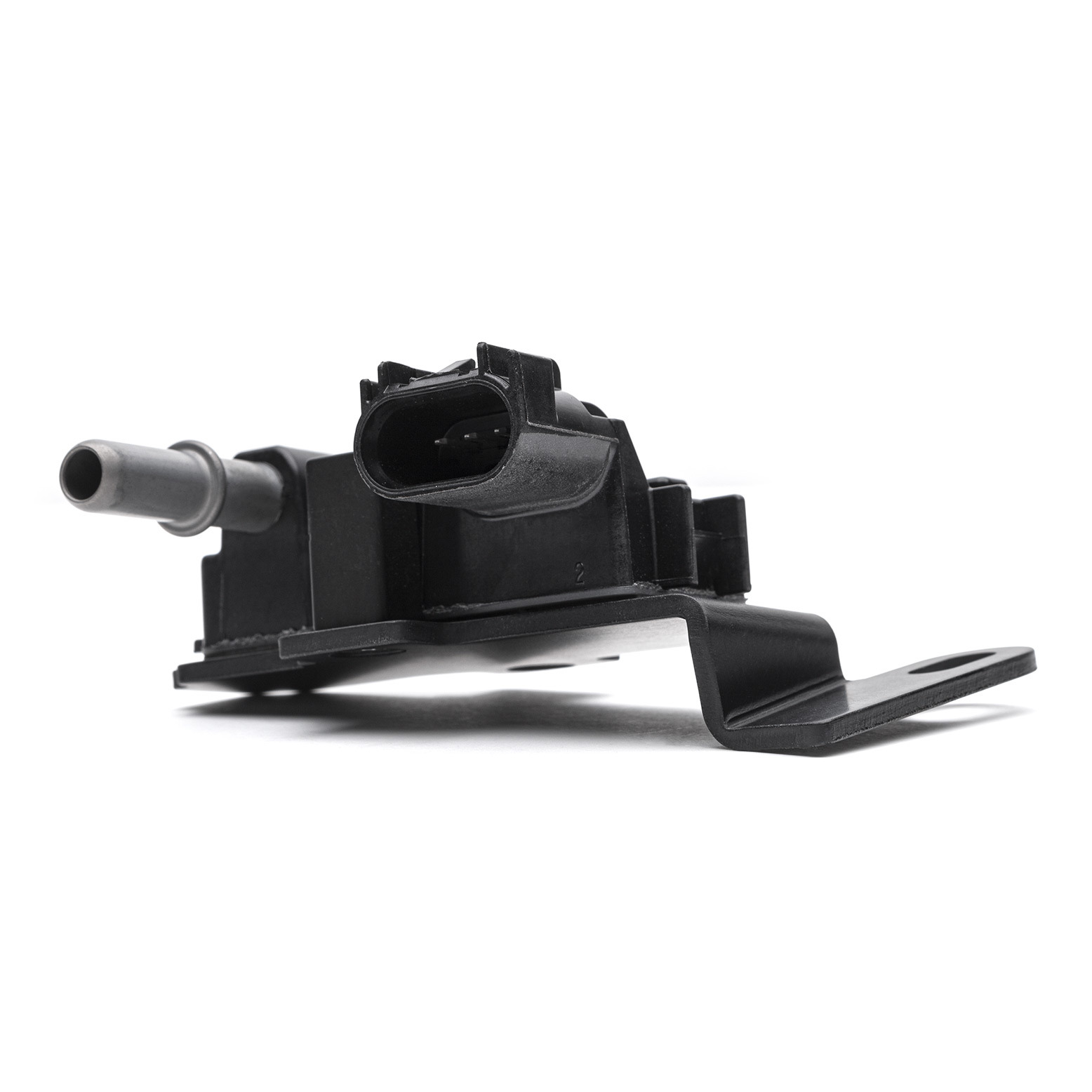

  • Flex Fuel Sensor w/ Bracket

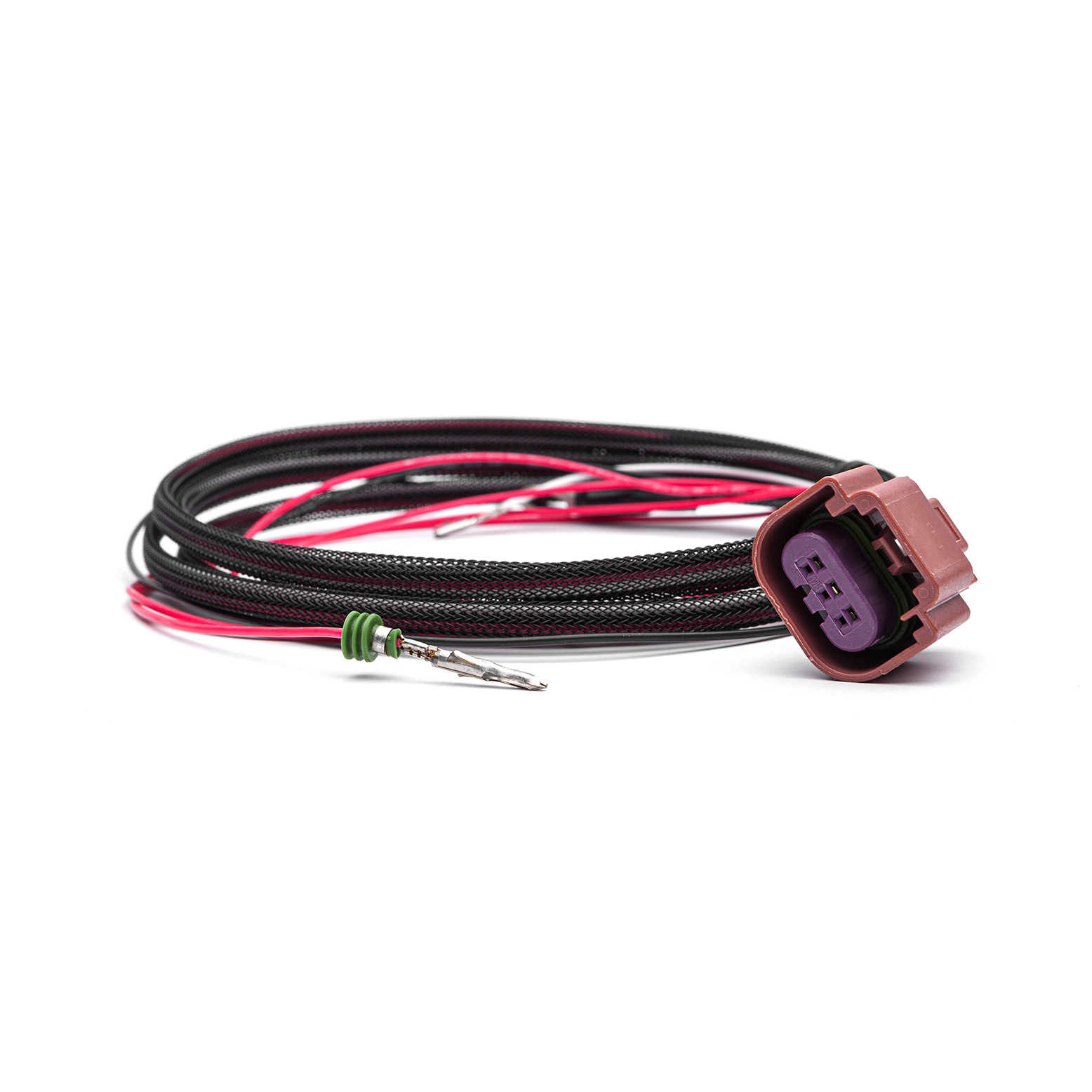

  • Proprietary Harness

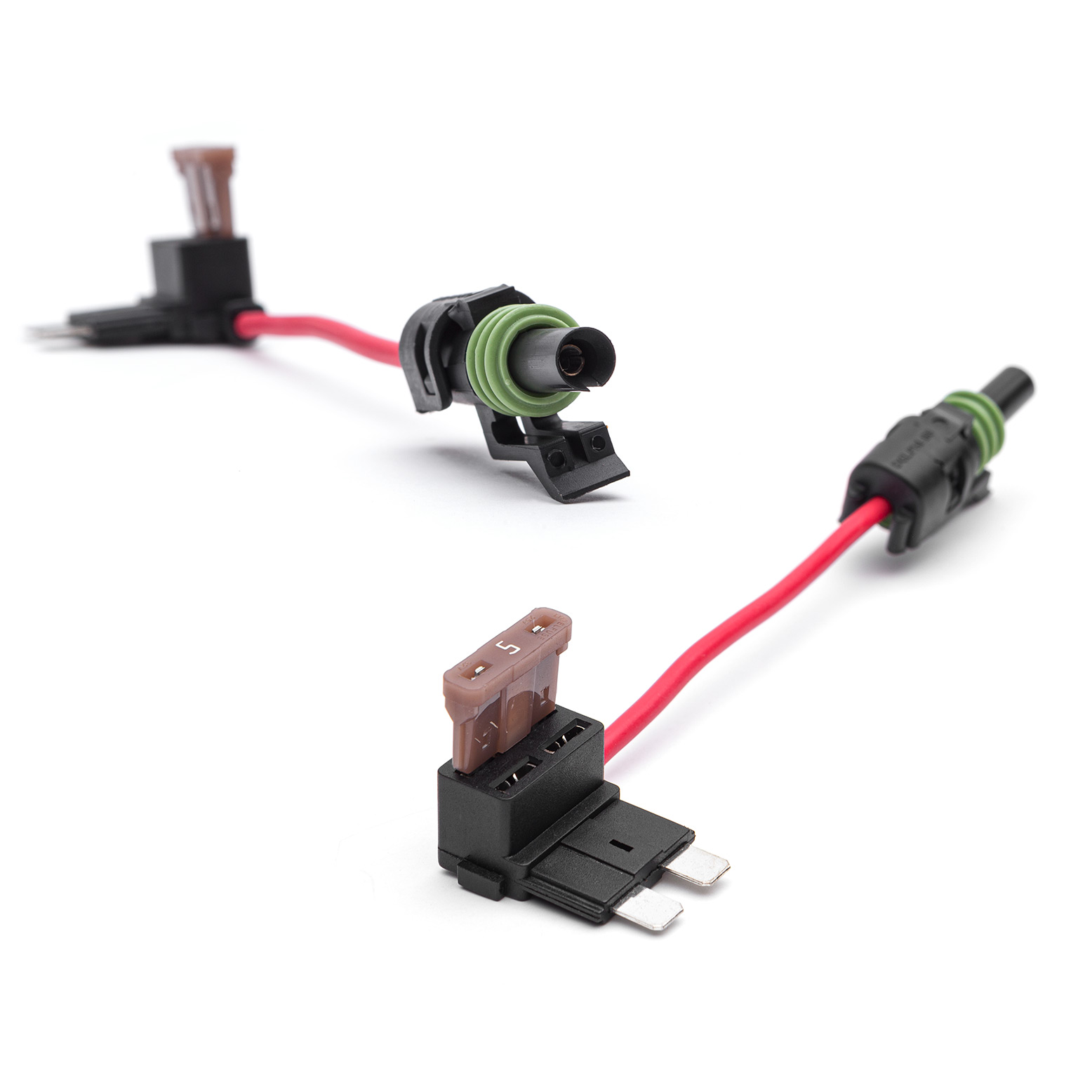

  • Fuse Tap Harness
  • Quick-Connect Fuel Fittings
  • Pin Locator Template & Tool
