Ford

Ford Stage 2 Redline Carbon Fiber Power Package Silver (Factory Location Intercooler) F-150 2.7L 2018-2020

$ 1,950.00

Availability: BACKORDER :: Ships in 3 - 4 Weeks
Product Code: FOR0080S20SL-RED

California Residents: Prop 65 Warning


Free Shipping
Maps Available

Emissions
This part is legal under the provisions of EPA’s Anti-Tampering Policy. COBB Tuning has established a reasonable basis (testing results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and EPA’s Anti-Tampering Policy.

NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY EMISSION CONTROLLED MOTOR VEHICLE.

Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending. Once testing is complete with California, and an EO number is issued, this product will be updated to 50-state legal status.

Description

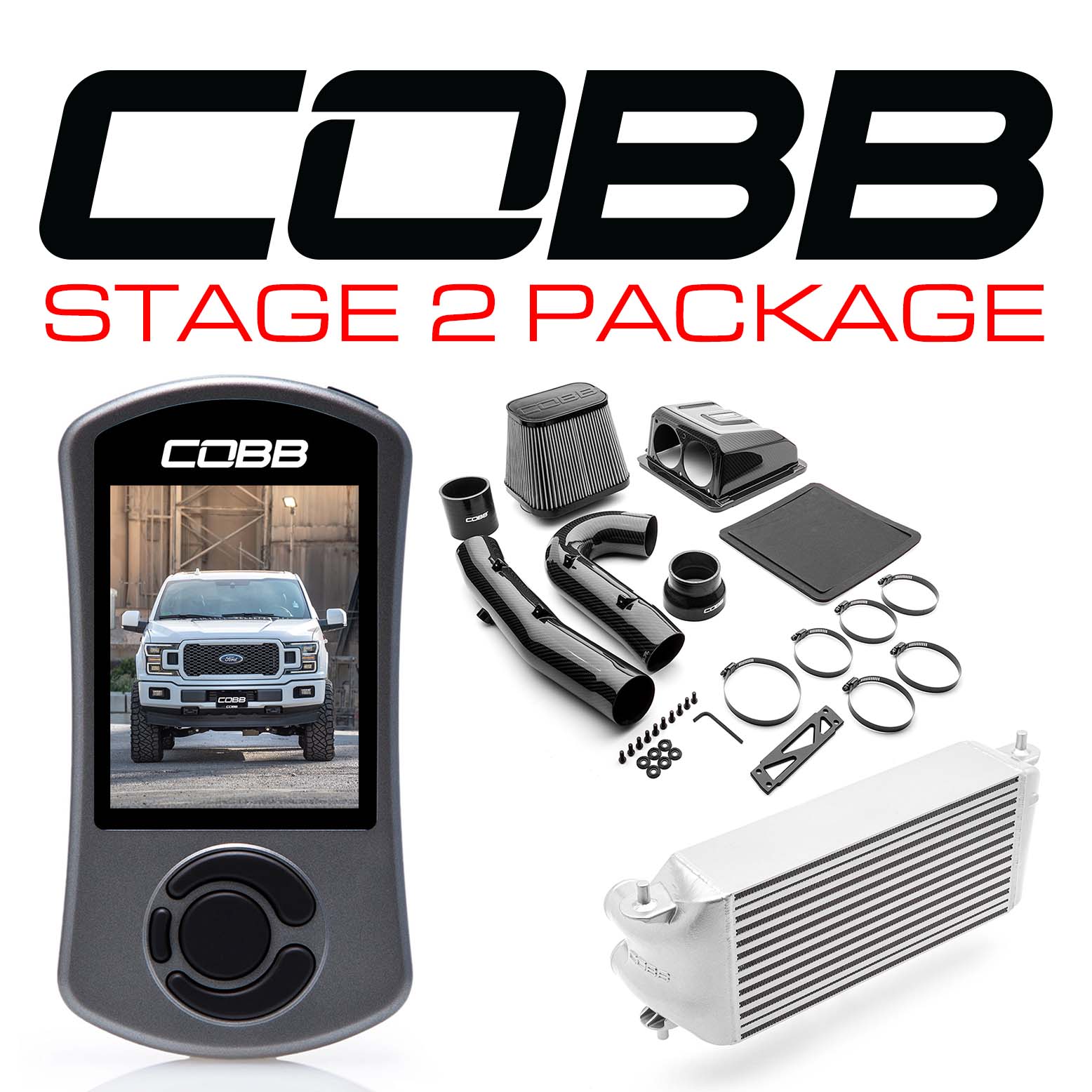

This Stage 2 Power Package includes the COBB Accessport, our Redline Carbon Fiber Intake System, and a Silver Factory Location Intercooler Upgrade.

Simple ECU flashing with gauge package! The new in-cabin mountable Accessport V3 has a large, full color, higher resolution screen which allows you to monitor up to six parameters in real time. Fully customizable from the look (multiple bezel colors), layout (set up race, street, or dyno gauge clusters), and mounting options (choose from 1,000s of standard vehicle mounts). And what's looks without brains? More processing power, memory, and storage to flash faster while saving all of your maps and logs.

All of the carbon fiber pieces in this system are constructed of a 3k tow in a 2x2 twill weave pattern with a gloss clear coat. Factory piping from the air-box is replaced with 3" carbon tubing to maximize airflow. A bespoke carbon airbox lid replaces the factory piece and allows installation of our reusable dual-inlet, high flow filter offering 165% additional surface area over stock. Black 4-ply silicone couplers are held in place with black e-coated stainless steel clamps, offering a sleek look and OEM-quality installation.

This FMIC was designed in house with attention to detail lacking on other aftermarket offerings. Computational fluid dynamic analysis was used to create the smoothest end tank design which increases flow evenly and resulted in no areas of significant turbulence. The outlet port of the intercooler was also designed with a large chamfer to provide a smooth transition out of the intercooler into the throttle body tube to further reduce turbulence in the system.

For those planning additional modifications like water or methanol injection, this intercooler also has two flat sections into the casting. The top flat can easily be drilled and tapped to introduce a nozzle. The bottom flat can be used as a drain port.

This cast aluminum, TIG welded assembly offers a core that is 70% greater than the stock unit and offers 10% more cooling surface area. All while mating snugly to the OEM shutter shroud requiring absolutely no cutting, trimming, or permanent modification to the vehicle.



Warning! Installation of this Accessport over anything other than OEM or COBB software may result in ECU/TCU failure. Please contact COBB Support if you have any questions.


Ford Accessport V3 F-150 Ecoboost 2.7L 2018-2020

Ford Accessport V3 F-150 Ecoboost 2.7L 2018-2020

$ 550.00
Availability: Ships in 24 hours

Ford Front Mount Intercooler Silver (Factory Location) F-150 EcoBoost Raptor / Limited / 3.5L / 2.7L

Ford Front Mount Intercooler Silver (Factory Location) F-150 EcoBoost Raptor / Limited / 3.5L / 2.7L

$ 995.00
Availability: BACKORDER :: Ships in 3 - 4 Weeks

Ford Redline Carbon Fiber Intake System F-150 2.7L EcoBoost 2018-2020

Ford Redline Carbon Fiber Intake System F-150 2.7L EcoBoost 2018-2020

$ 595.00
Availability: Ships in 24 hours

COBB Vehicle Badge

COBB Vehicle Badge

$ 19.95
Availability: Ships in 24 hours


Features
Ford Stage 2 Redline Carbon Fiber Power Package Silver (Factory Location Intercooler) F-150 2.7L 2018-2020
  • Accessport V3
  • Redline Carbon Fiber Intake System
  • Factory Location FMIC Silver
  • COBB Badge
  • Compatible with COBB Accessport OTS Maps


Details

Simple Installation:  Everything is included for the simple installation!  Intuitive on-screen instructions identify your exact vehicle and available maps.

Simple Uninstall:  Revert your ECU to exactly as it was before with the easy to use Uninstall option from the main menu.

Troubleshooting:  Read codes, Clear Codes, Identify Vehicle, I/M Readiness, Keep Alive Memory, Memory Snapshot, Reset ECU.

Change Maps:  Store up to 100 maps from our OTS map database or from your favorite COBB tuner and quickly switch between them for any need.

Gauges: Use your Accessport as a gauge to monitor boost or any other live information, directly from the ECU.

Data Logging:  Record multiple data channels simultaneously for in-depth evaluation of engine performance.  Stores up to 10 hours.

Performance Measuring:  Welcome to your own performance evaluation suite!  Measure 0-60 mph time, 60 foot and ¼ mile ET’s. and Trap Speed.

Shift Light:  Set custom RPM warning lights for perfect shifts every time.

AP Manager:  Use your PC or Mac to manage maps, download recorded datalogs, or quickly update your Accessport.  Download free from right HERE.
