Subaru 3-Port Boost Control Solenoid (BCS)

$ 115.00

Availability: Ships in 24 hours
Product Code: 715750

California Residents: Prop 65 Warning


Free Shipping

Description

CUSTOM TUNING REQUIRED!! Contact your Protuner in order to safely utilize this part!

The COBB 3-Port Boost Solenoid (BCS) is an excellent upgrade for modern turbocharged vehicles, enabling precise boost control in a tidy package that is easy to install and tune. Our BCS will eliminate boost fluctuations inherent in the OEM boost control system, providing stable and repeatable boost control to base the vehicle's tune on. It is equally capable of providing this stable boost control at stock boost levels as well as extremely high boost levels associated with big-power builds.

The COBB Tuning 3-Port BCS features 1/8" low-profile barb fittings to keep the unit compact and are nickel coated for corrosion resistance. Optional 1/4" nickel plated fittings are also available separately. Viton spools and seals are used throughout for long life and lubricated with Dow Corning silicone grease. The manual override is sealed with an O-ring, the wiring harness is sealed to the casing using a waterproof grommet and the solenoid wires are ultrasonically welded to the coil, making the device waterproof and safe to wash. The BCS is rated to operate up to 120psi.

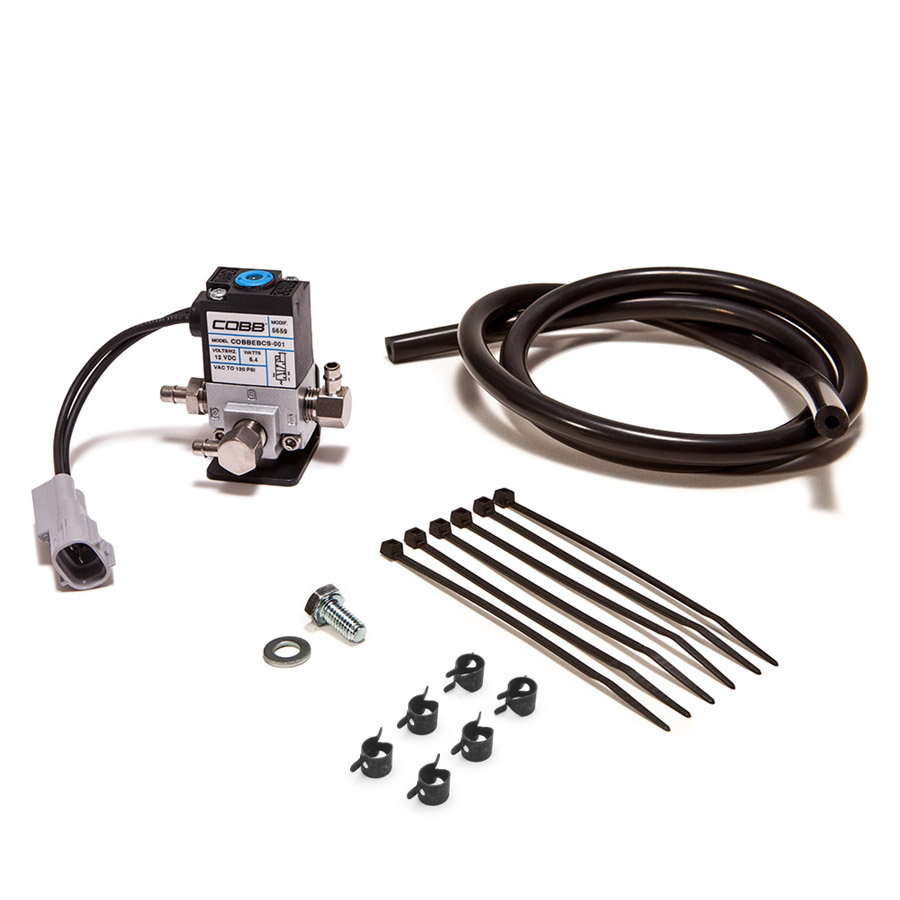

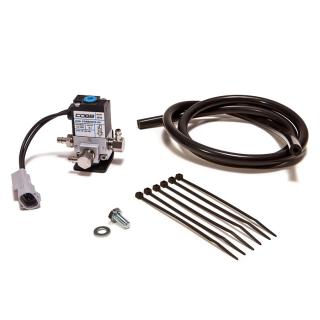

COBB Tuning has made the COBB 3-Port BCS installation as simple as possible. It mounts in the stock location and plugs directly into the stock wiring harness, making the physical install and electrical connection as simple as possible. The BCS comes with a custom aluminum mounting bracket, stainless steel hardware, boost-line to complete all connections and zip-ties to route the boost-line neatly through the engine bay. Installation Instructions are provided, are easy to understand, and provide routing instructions for both internal and external wastegate configurations.

The COBB Tuning 3-Port BCS is engineered to be the ultimate electronic boost control device for modern turbocharged applications, designed with outstanding boost control, engineered for consistent performance and extended service life and configured for easy installation. Get your boost under control and Access the Potential of your turbocharged Subaru today!


Why?

The COBB 3-Port Boost Control Solenoid (BCS) adds the flexibility and precision needed for properly controlling boost via the factory ECU. Many upgrades to the turbocharging system (such as larger turbochargers and external wastegates) require the increased performance, reliability, flexibility, safety and installation options that the COBB 3-Port BCS provides.


Features
Subaru 3-Port Boost Control Solenoid (BCS)
  • Accurate and Consistent Boost Control
  • Plug and Play 18-Gauge Wiring Harness
  • 1/8" Nickel Plated Barbed Fittings
  • Rated up to 120psi
  • Custom Aluminum BCS Mount


Customer Photos

Reviews
Subaru 3-Port Boost Control Solenoid (BCS) is rated 5.0 out of 5 by 7.
Rated 5 out of 5 by from Great addition helps hold a more relaible boost pressure all the way through. Really not too hard to install. Great product.
Date published: 2017-05-29
Rated 5 out of 5 by from Awesome quality As always quality product from cobb! After installing and getting a tune which you NEED. It hold boost much better then stock boost controller. Install was simple and straight forward when you know which ports to plug the vacuum lines into. I'd recommend it if you want to upgrade your stock boost controller!
Date published: 2017-02-06
Rated 5 out of 5 by from Boost control selanoid Easy installation works awesome fast shipping.etc...
Date published: 2016-02-15
Rated 5 out of 5 by from Good stuff Purchased 3 port Electronics boost controller about a month ago. Works great. Installation was not hard. 30 min. Unfortunately No instructions. Referring to YouTube was helpful. Simple 1 to intake 2 to waste gate 3 to turbo would be helpful in some written diagram.
Date published: 2017-11-14
Rated 5 out of 5 by from Weight Hello, Could you give me the wheight ? Thank in avdance
Date published: 2016-04-21
Rated 5 out of 5 by from great! probably easiest install you'd ever do, maybe except an accessport... took me about 7 minutes. awesome quality as always.
Date published: 2016-05-14
Rated 5 out of 5 by from Great Working great! Install was eazy.it came with nice silicon hoses. That stock ones was falling a part.
Date published: 2016-03-19
  • y_2018, m_5, d_23, h_23
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_7
  • loc_en_US, sid_715750, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_cobb
  • bvseo_sdk, p_sdk, 2.3.0.1
  • CLOUD, method:getContent, 28.13ms
  • REVIEWS, PRODUCT

Questions

Confirmed Applications
2008 Subaru Impreza STi Hatch MT ADM 2008 Subaru Impreza STi Hatch MT USDM 2008 Subaru Impreza WRX Hatch AT USDM 2008 Subaru Impreza WRX Hatch MT ADM 2008 Subaru Impreza WRX Hatch MT USDM 2008 Subaru Impreza WRX Sedan AT USDM 2008 Subaru Impreza WRX Sedan MT ADM 2008 Subaru Impreza WRX Sedan MT USDM 2009 Subaru Impreza 2.5 GT Hatch AT USDM 2009 Subaru Impreza 2.5 GT Sedan AT USDM 2009 Subaru Impreza STi Hatch MT ADM 2009 Subaru Impreza STi Hatch MT USDM 2009 Subaru Impreza WRX Hatch MT ADM 2009 Subaru Impreza WRX Hatch MT USDM 2009 Subaru Impreza WRX Sedan MT ADM 2009 Subaru Impreza WRX Sedan MT USDM 2010 Subaru Impreza 2.5 GT Hatch AT USDM 2010 Subaru Impreza 2.5 GT Sedan AT USDM 2010 Subaru Impreza STi Hatch MT ADM 2010 Subaru Impreza STi Hatch MT USDM 2010 Subaru Impreza WRX Hatch MT ADM 2010 Subaru Impreza WRX Hatch MT USDM 2010 Subaru Impreza WRX Sedan MT ADM 2010 Subaru Impreza WRX Sedan MT USDM 2011 Subaru Impreza STI Sedan MT ADM 2011 Subaru Impreza STi Hatch MT ADM 2011 Subaru Impreza STi Hatch MT USDM 2011 Subaru Impreza STi Sedan MT USDM 2011 Subaru Impreza WRX Hatch MT ADM 2011 Subaru Impreza WRX Hatch MT USDM 2011 Subaru Impreza WRX Sedan MT ADM 2011 Subaru Impreza WRX Sedan MT USDM 2012 Subaru Impreza STI Sedan MT ADM 2012 Subaru Impreza STi Hatch MT ADM 2012 Subaru Impreza STi Hatch MT USDM 2012 Subaru Impreza STi Sedan MT USDM 2012 Subaru Impreza WRX Hatch MT ADM 2012 Subaru Impreza WRX Hatch MT USDM 2012 Subaru Impreza WRX Sedan MT ADM 2012 Subaru Impreza WRX Sedan MT USDM 2013 Subaru Impreza STI Sedan MT ADM 2013 Subaru Impreza STi Hatch MT ADM 2013 Subaru Impreza STi Hatch MT USDM 2013 Subaru Impreza STi Sedan MT USDM 2013 Subaru Impreza WRX Hatch MT ADM 2013 Subaru Impreza WRX Hatch MT USDM 2013 Subaru Impreza WRX Sedan MT ADM 2013 Subaru Impreza WRX Sedan MT USDM 2014 Subaru Impreza STI Sedan MT ADM 2014 Subaru Impreza STi Hatch MT ADM 2014 Subaru Impreza STi Hatch MT USDM 2014 Subaru Impreza STi Sedan MT USDM 2014 Subaru Impreza WRX Hatch MT ADM 2014 Subaru Impreza WRX Hatch MT USDM 2014 Subaru Impreza WRX Sedan MT ADM 2014 Subaru Impreza WRX Sedan MT USDM
