2021-2022 Ford F-150 3.5L EcoBoost Tuning

We are excited to announce the availability of Accessport tuning, bolt-on power upgrades, and Accesstuner Pro custom tuning support for Ford’s 3.5L EcoBoost powered F-150 and Tremor trucks.  Much like their predecessors, the updated F-150 is still powered by a 3.5L Twin-Turbocharged V6 EcoBoost engine and is prime for tuning.  Some slight tweaks by Ford do allow the newer trucks to make a bit more power, something we certainly aren’t complaining about.  This launch of 2021-2022 Ford F-150 tuning includes a 50-State Legal Accessport and Off The Shelf (OTS) maps as well as Accesstuner Pro to allow for custom tuning by any of our Authorized Protuners.

During our development, we also uncovered the need for an all-new product, our Intake Snorkel Bracket, that is immensely valuable to any modern EcoBoost powered F-150.  More on that below.


Accessport for 2021-2022 Ford F-150 EcoBoost/Tremor

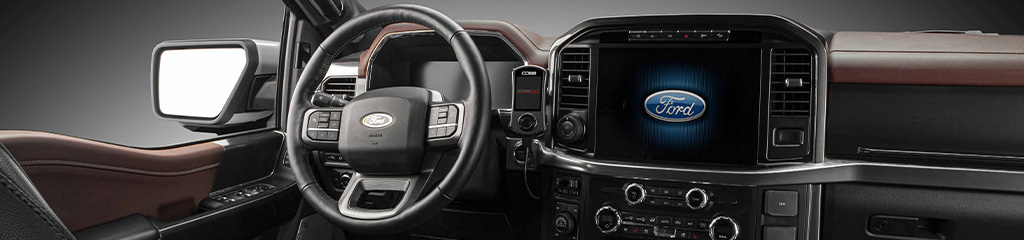

The Accessport is the world’s best selling, most flexible, and easiest to use ECU tuning solution for your 3.5L EcoBoost powered 2021-2022 Ford F-150 and Tremor.   It allows you to increase power by replacing conservative factory settings with more aggressive calibrations, and more!  The Accessport is in-cabin mountable and has a large, full color, high-resolution screen which allows you to monitor up to six parameters in real time.  It is fully customizable from the look (optional bezel colors), layout (set up race, street, or dyno gauge clusters), and mounting options (choose from 1,000s of standard vehicle mounts).

Both Engine and Transmission tuning are supported in one part number, the AP3-FOR-011.

The ECU Maps below are available in two flavors each, one for 91 octane fuel and one for 93 octane fuel.

  • Stage0 v100

  • Stage1 v100

  • Stage2 v100

  • Performance Tow v100

For full details of each Performance Map, visit our Map Notes Page.

Power Gains

Stage1 93

Stage1 91

Peak HP Increase

+11.4% HP

433.5 @ 4660 RPM vs
389.2 hp @ 5080 RPM

+9.9% HP

427.7 hp @ 5000 RPM vs
389.2 hp @ 5080 RPM

Peak TQ Increase

+12.9% TQ

563.6 ft-lb @ 3770 RPM vs
499.34 ft-lb @ 3550 RPM

+9.7% TQ

547.8 ft-lb @ 3690 RPM vs
499.3 ft-lb @ 3550 RPM

Max HP

+21.3% HP

79.5 ft-lb vs 65.5 ft-lb
@ 2090 RPM

+20.1% HP

78.7 hp vs 65.5 hp
@ 2090 RPM

Max TQ

+21.3% TQ

202 ft-lb vs 166.5 ft-lb
@ 2090 RPM

+20.4% TQ

200.4 ft-lb vs 166.5 ft-lb
@ 2090 RPM

Average HP

  • Stock 294.1 hp

  • Tuned 337.6 hp

  • Stock 294.1 hp

  • Tuned 332.2 hp

Average TQ

  • Stock 385.9 ft-lb

  • Tuned 442.6 ft-lb

  • Stock 385.9 ft-lb

  • Tuned 436.4 ft-lb

Stage2 93

Stage2 91

Peak HP Increase

+14.4% HP

445.2 hp @ 4870 RPM vs
389.2 hp @ 5080 RPM

+11.5% HP

433.94 @ 4880 RPM vs
382.9 @ 5080 RPM

Peak TQ Increase

+16.3% TQ

580.9 ft-lb @ 3690 RPM vs
499.34 ft-lb @ 3550 RPM

+13.3% TQ

565.72 ft-lb @ 3690 RPM vs
499.34 ft-lb @ 3550 RPM

Max HP

+31.9% HP

86.4 hp vs 65.6 hp
@ 2090 RPM

+21.1% HP

421.2 hp vs 347.9 hp
@ 4120 RPM

Max TQ

+31.8% TQ

219.47 ft-lb vs 166.5 ft-lb
@ 2090 RPM

+21.3% TQ

538.9 ft-lb vs 444.4 ft-lb
@ 4130 RPM

Average HP

  • Stock 294.1 hp

  • Tuned 346.9 hp

  • Stock 294.1 hp

  • Tuned 335.9 hp

Average TQ

  • Stock 385.9 ft-lb

  • Tuned 456.3 ft-lb

  • Stock 385.9 ft-lb

  • Tuned 439.3 ft-lb

Performance Tow 93

Performance Tow 91

Peak HP Increase

+10.4% HP

429.78 hp @ 4910 RPM vs
389.2 hp @ 5080 RPM

+7.4% HP

417.8 hp @ 4990 RPM vs
389.2 @ 5080 RPM

Peak TQ Increase

+3.4% TQ

531.2 ft-lb @ 3410 RPM vs
499.34 ft-lb @ 3550 RPM

+3.4% TQ

516.5 ft-lb @ 3710 RPM vs
499.34 ft-lb @ 3550 RPM

Max HP

+12.6% HP

411.2 hp vs 365.2 hp
@ 4790 RPM

+25.7% HP

411.2 hp vs 365.2 hp
@ 4790 RPM

Max TQ

+12.7% TQ

452.54 ft-lb vs 401.7 ft-lb
@ 4790 RPM

+26.1% TQ

452.54 ft-lb vs 401.7 ft-lb
@ 4790 RPM

Average HP

  • Stock 294.1 hp

  • Tuned 329.4 hp

  • Stock 294.1 hp

  • Tuned 315.1 hp

Average TQ

  • Stock 385.9 ft-lb

  • Tuned 433.2 ft-lb

  • Stock 385.9 ft-lb

  • Tuned 410.5 ft-lb

Transmission Tuning

One significant change the ECU/TCM configuration in newer Ford vehicles as they are now a combined unit.  A benefit of this is that the Accessport only needs to install onto one module instead of two, making installation and map change time much quicker.  What it also means is that map selection during install may be a bit different as each ECU Performance map is able to be flashed in conjunction with any of the available TCM maps.

Available TCM Maps

Simulated Stock

Factory transmission tune from 2021/2022 F-150 EcoBoost.

COBB OEM+

  • Shift Points

    • Moderately increased RPM limits on upshifts

    • Altered shift behavior for more responsive downshifts

  • Shift Firmness

    • Moderately increased during high power/RPM shifts in Normal and Sport mode

  • Upshift Backout

    • Upshift inhibit (zero Accelerator pedal position gear-holding) in ‘Sport’ mode following high-power acceleration and throttle backout has been disabled. Stock behavior would inhibit upshift until pedal position is re-applied above ~10%.

  • Torque Limits

    • Increased torque limits for more aggressive launches and acceleration

COBB Sport

  • Shift Points
    • Moderately increased RPM limits on upshifts over OEM+ map
    • Altered shift behavior for even more responsive downshifts over OEM+ map

  • Shift Firmness

    • Moderately increased during high power/RPM shifts in Normal and Sport mode

  • Upshift Backout

    • upshift inhibit (zero Accelerator pedal position gear-holding) in ‘Sport’ mode following high-power acceleration and throttle backout has been disabled. Stock behavior would inhibit upshift until pedal position is re-applied above ~10%.

  • Torque Limits

    • Increased torque limits for more aggressive launches and acceleration

TCM Map Notes


COBB Custom Features

COBB Custom Features: Dynamic Pedal Control

  • Dynamic Pedal Control allows you to quickly adjust throttle pedal sensitivity easily.  The system works by modulating from the throttle mapping found in your current drive mode (i.e. Drive/Normal, Mud/Sand, Sport) and some predetermined maximum and minimum sensitivity levels.  Each step negative (-1 – -5) decreases throttle sensitivity which can help achieve better mpg, or a quick detune if someone less responsible is driving.  When stepping positive (1-10) you’ll be making smaller pedal movements have a much bigger impact on the throttle which can help the car feel faster and more responsive.

COBB Custom Features: Tire Size Adjustment

  • Tire Sized Adjustment does just what it seems it would.  This feature allows those with up-sized tires to apply a correction to the truck’s ECU and TCM to ensure accurate behavior and speed display.




Intake Scoop Bracket, aka ‘Torq Snork’

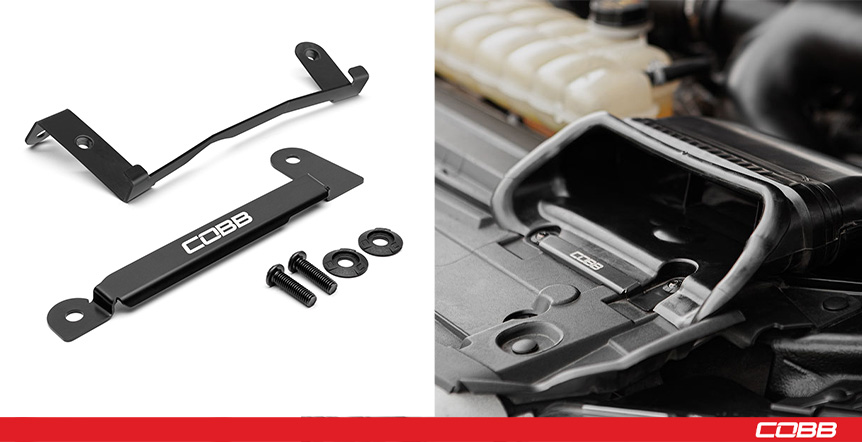

Introducing the COBB Intake Bracket, known internally as the “Torq-Snork”. This brace uses two pieces to sandwich the soft plastic snorkel to the core support, replacing the fragile plastic clips with hardware and preventing all deformation under load. All you need is a flathead screwdriver to pop the old clips out and the provided Allen key to secure the hardware.

We can frequently achieve reliable power and torque gains over the stock calibration without installing any physical modifications, but when developing our performance calibrations for the newer 3.5L F-150s, we noticed some interesting issues with the intake system after only adding a small amount of power.

The leading edge of the snorkel that rises from the lower airbox to overtop of the radiator core support is constructed of very soft, very thin rubber. Making things worse, a significant portion of the cross sectional area of this piece seals against the hood of the truck, making the actual airflow path pretty thin. This system works okay in factory form, but when turning up the boost we’ve seen it turn into a big problem and collapse under vacuum.  In the dyno graph below you can see the difference between a clean pull (red) with the bracket in place and two pulls where a partial (green) and complete (blue) collapse occurs.

This collapse can lead to significant power loss and increased wear on engine components, namely the turbochargers, if not addressed.  CLICK HERE for a complete technical write-up showing the effect this issue can have on your truck!


Additional Parts

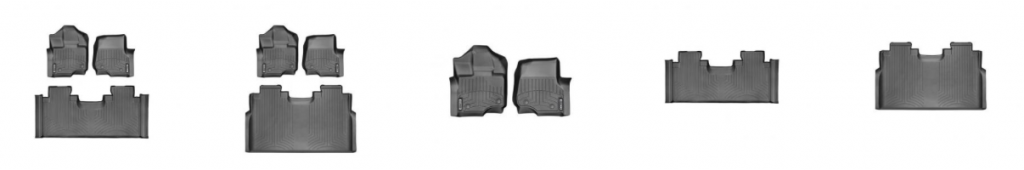

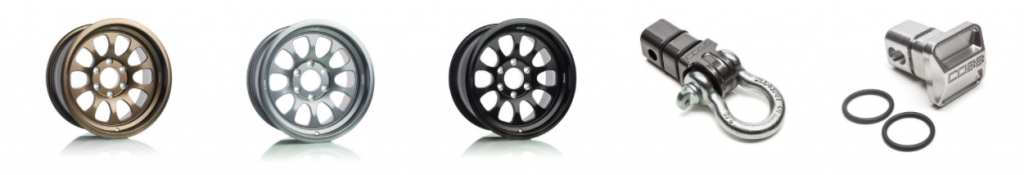

On top of the Accessport and Torq Snork, we do offer additional products for your EcoBoost F-150!  Anything from aftermarket off-road wheels by Titan7 to COBB branded WeatherTech Floor Liners as well as hitch accessories.





Maximize the performance of your 2021-2022 Ford F-150 3.5L EcoBoost with our range of Ford F-150 mods – visit our website now and discover the perfect upgrades to enhance your driving experience!
