COBB Subaru 4 Bar MAP Sensor - Cast Manifold WRX/STI/FXT - Sensor Only

$ 175.00
Availability: Ships in 24 hours
Product Code: A12100

California Residents: Prop 65 Warning

Free Shipping
Emissions
This part is in the process of external testing with the EO process ongoing.

NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY EMISSION CONTROLLED MOTOR VEHICLE.

While we believe that these parts comply with EPA’s Anti-Tampering Policy we have not completed the testing/CARB EO submission process.
Description

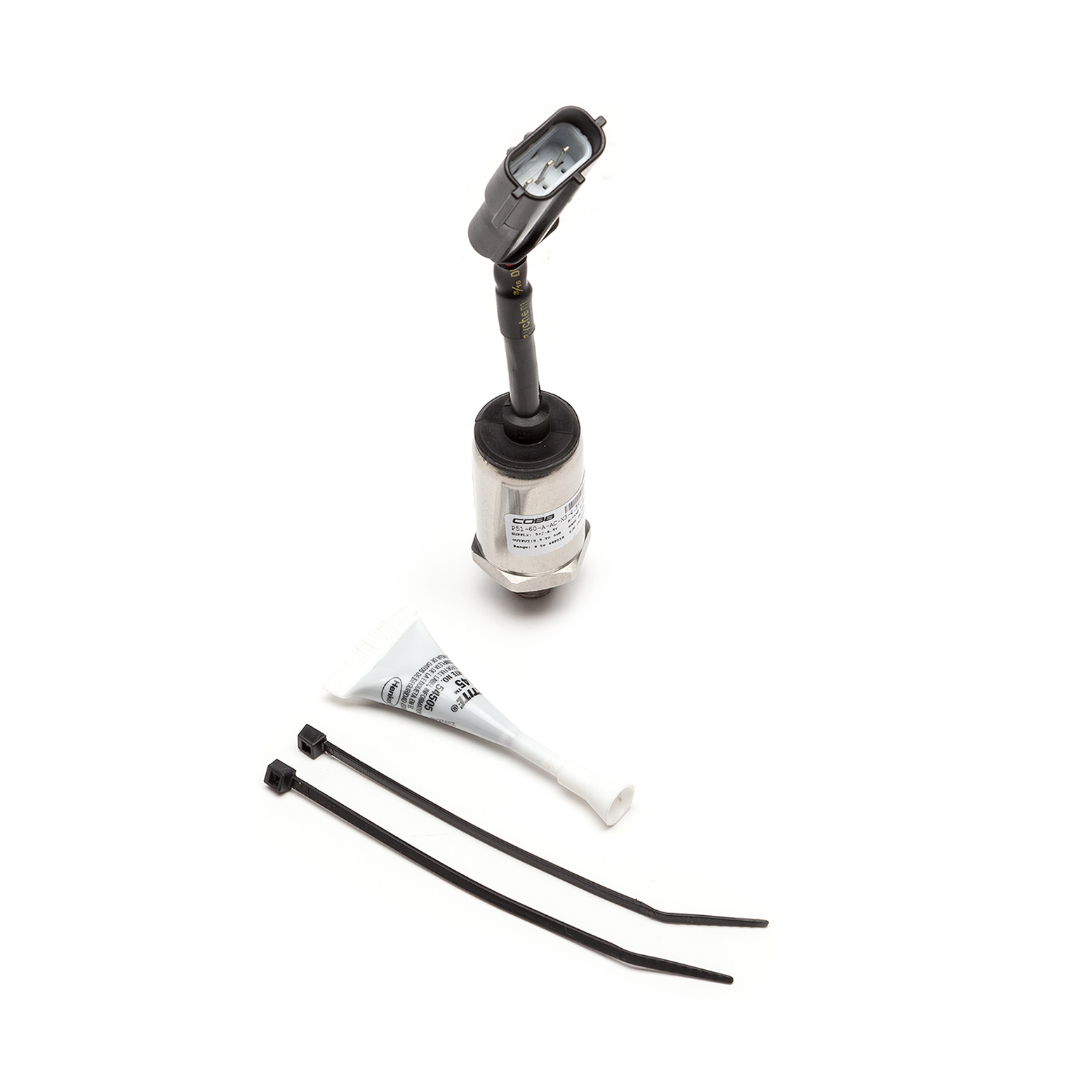

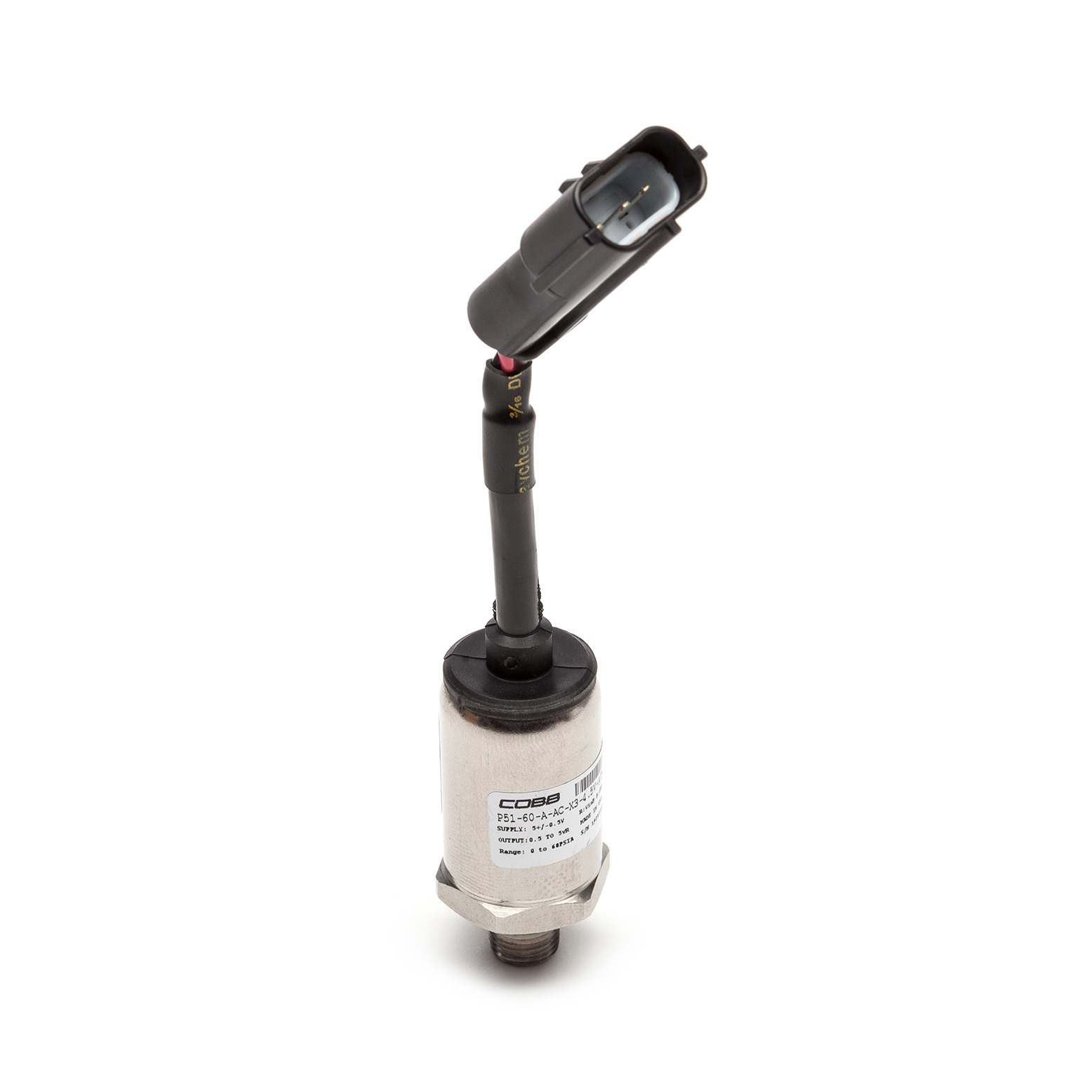

Our Subaru 4 Bar MAP Sensor is a plug and play solution that allows for precise measurement of pressures up to 4 Bar.

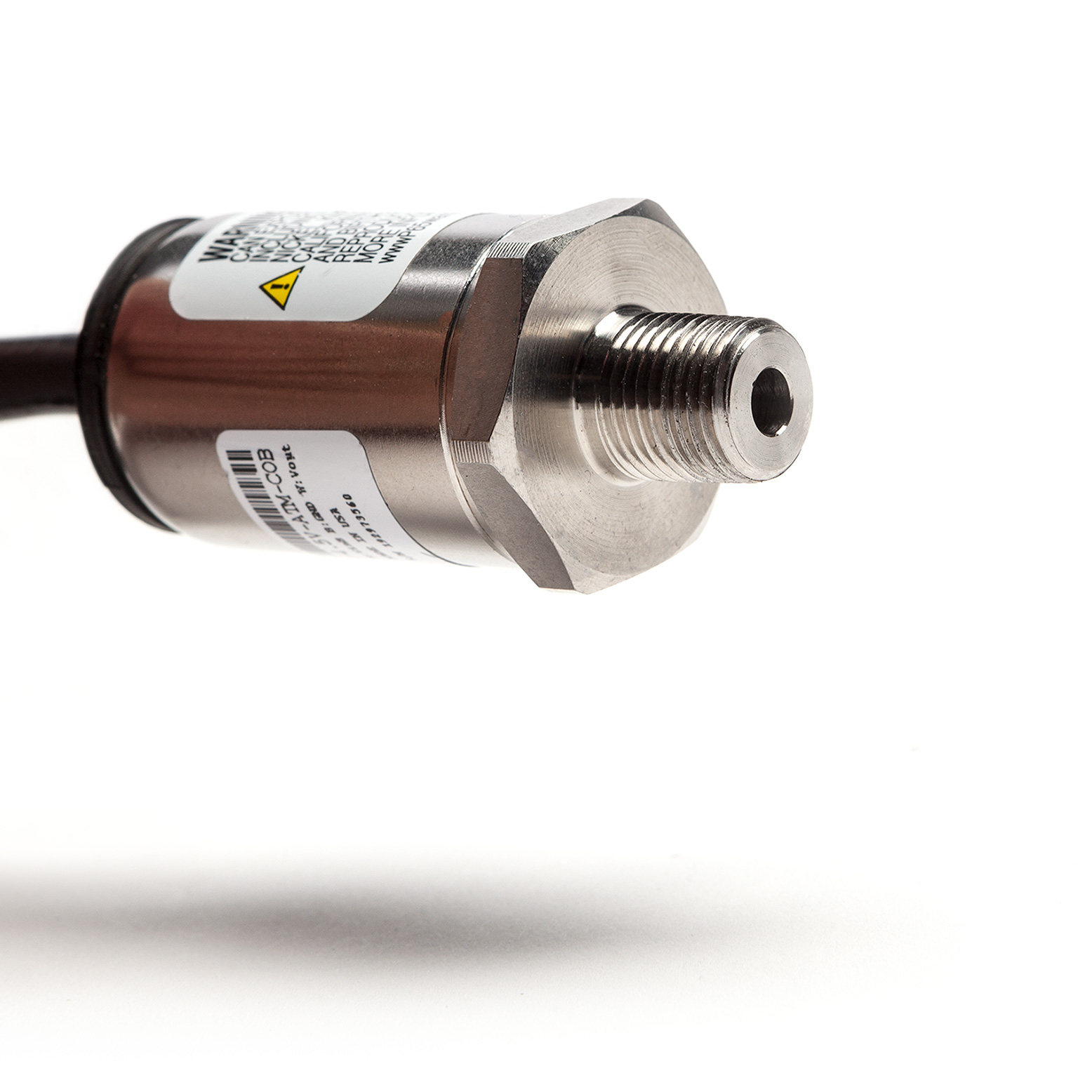

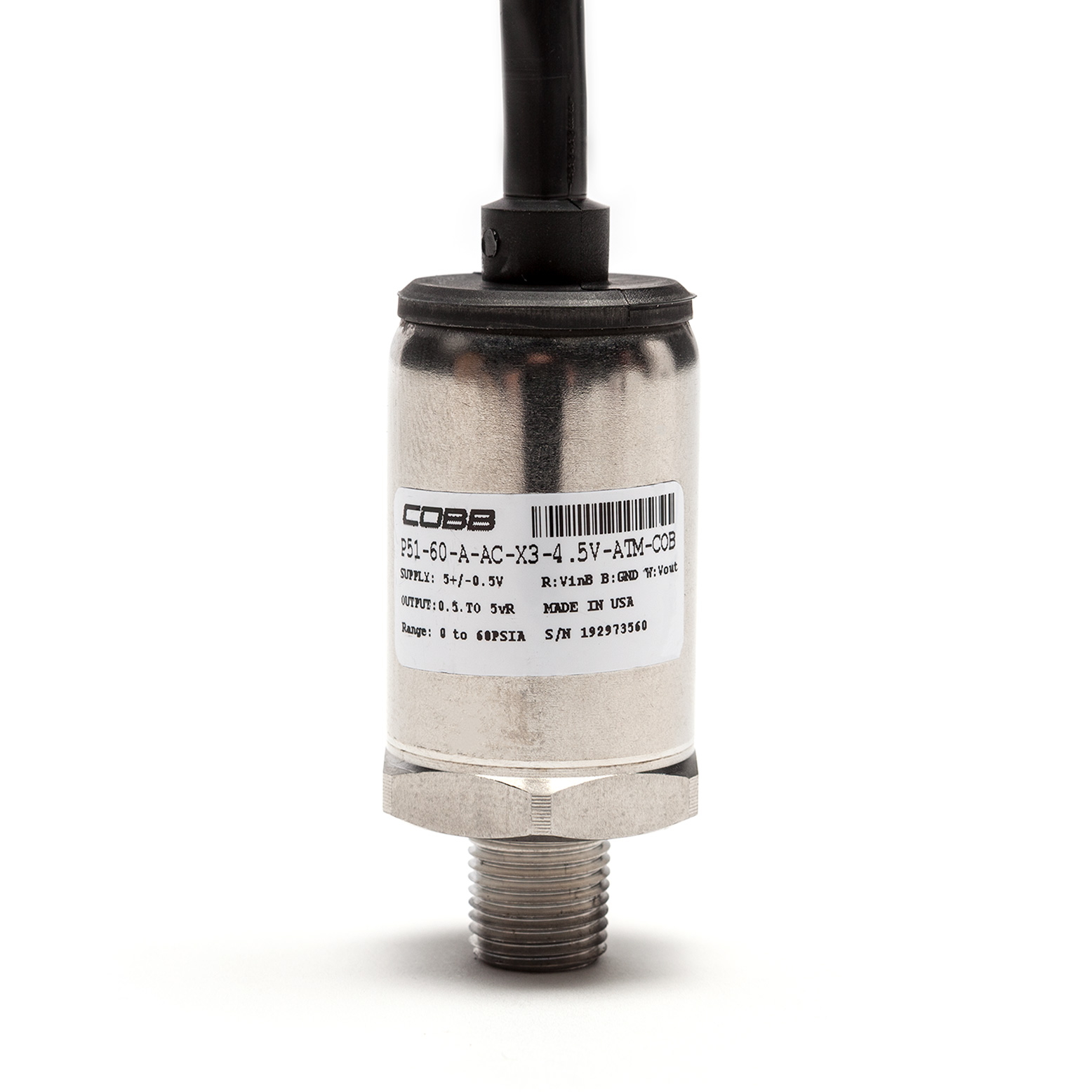

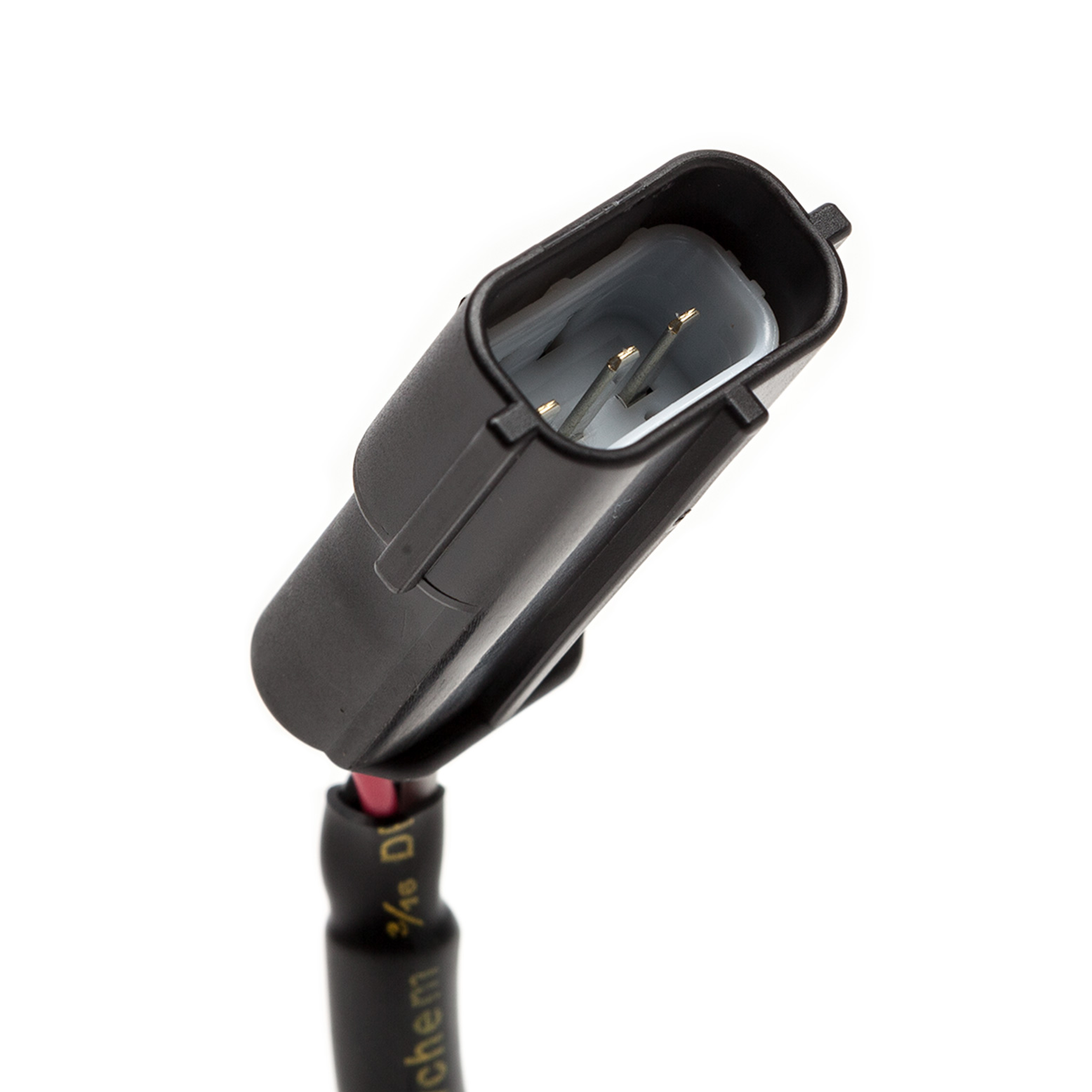

The pressure sensor itself is made up of a stainless steel body and flying leads terminated into an OEM quality connector, allowing for direct plug-and-play installation into supported Subarus.

  • Accurate to within +/- 1% Full Scale
  • Linear 0.5v to 4.5v Output
  • <1ms Response Time
  • 0-60psi Absolute Pressure Measurement

SENSOR ONLY, REQUIRES 1/8" NPT ADAPTER FOR INSTALL

Why?

Most Subarus are equipped with either a 2.5 or 3 bar MAP sensor from the factory which allows accurate reading up to either 21.5psi or 28.8psi (respectively). For vehicles targeting boost values higher than that, an upgraded sensor is required for accurate measurement and control.

Custom Tuning Required

Features
COBB Subaru 4 Bar MAP Sensor - Cast Manifold WRX/STI/FXT - Sensor Only
  • OEM Quality Plug-and-Play Connector
  • 1/8" NPT Threads
  • Total Error Band <1% Full Scale (+/- 0.6psi)
  • <1ms Response Time
  • Retains OEM Sensor DTC Detection Capabilities
Reviews
Questions
Confirmed Applications
2002 Subaru Impreza WRX Sedan AT USDM 2002 Subaru Impreza WRX Sedan MT USDM 2002 Subaru Impreza WRX Wagon AT USDM 2002 Subaru Impreza WRX Wagon MT USDM 2003 Subaru Impreza WRX Sedan AT USDM 2003 Subaru Impreza WRX Sedan MT USDM 2003 Subaru Impreza WRX Wagon AT USDM 2003 Subaru Impreza WRX Wagon MT USDM 2004 Subaru Impreza STi MT USDM 2004 Subaru Impreza WRX Sedan AT USDM 2004 Subaru Impreza WRX Sedan MT USDM 2004 Subaru Impreza WRX Wagon AT USDM 2004 Subaru Impreza WRX Wagon MT USDM 2005 Subaru Impreza STi MT USDM 2005 Subaru Impreza WRX Sedan AT USDM 2005 Subaru Impreza WRX Sedan MT USDM 2005 Subaru Impreza WRX Wagon AT USDM 2005 Subaru Impreza WRX Wagon MT USDM 2006 Subaru Impreza STi MT USDM 2006 Subaru Impreza WRX Sedan AT USDM 2006 Subaru Impreza WRX Sedan MT USDM 2006 Subaru Impreza WRX Wagon AT USDM 2006 Subaru Impreza WRX Wagon MT USDM 2007 Subaru Impreza STi MT USDM 2007 Subaru Impreza WRX Sedan AT USDM 2007 Subaru Impreza WRX Sedan MT USDM 2007 Subaru Impreza WRX Wagon AT USDM 2007 Subaru Impreza WRX Wagon MT USDM 2008 Subaru Impreza STi Hatch MT ADM 2008 Subaru Impreza STi Hatch MT USDM 2009 Subaru Impreza STi Hatch MT ADM 2009 Subaru Impreza STi Hatch MT USDM 2010 Subaru Impreza STi Hatch MT ADM 2010 Subaru Impreza STi Hatch MT USDM 2011 Subaru Impreza STI Sedan MT ADM 2011 Subaru Impreza STi Hatch MT ADM 2011 Subaru Impreza STi Hatch MT USDM 2011 Subaru Impreza STi Sedan MT USDM 2012 Subaru Impreza STI Sedan MT ADM 2012 Subaru Impreza STi Hatch MT ADM 2012 Subaru Impreza STi Hatch MT USDM 2012 Subaru Impreza STi Sedan MT USDM 2013 Subaru Impreza STI Sedan MT ADM 2013 Subaru Impreza STi Hatch MT ADM 2013 Subaru Impreza STi Hatch MT USDM 2013 Subaru Impreza STi Sedan MT USDM 2014 Subaru Impreza STI Sedan MT ADM 2014 Subaru Impreza STi Hatch MT ADM 2014 Subaru Impreza STi Hatch MT USDM 2014 Subaru Impreza STi Sedan MT USDM
2005 Subaru Forester XT AT USDM 2005 Subaru Forester XT MT USDM 2006 Subaru Forester XT AT USDM 2006 Subaru Forester XT MT USDM 2007 Subaru Forester XT AT USDM 2007 Subaru Forester XT MT USDM 2008 Subaru Forester XT AT USDM 2008 Subaru Forester XT MT USDM
2015 Subaru WRX STI Sedan MT ADM 2015 Subaru WRX STI Sedan MT USDM 2016 Subaru WRX STI Sedan MT ADM 2016 Subaru WRX STI Sedan MT USDM 2017 Subaru WRX STI Sedan MT ADM 2017 Subaru WRX STI Sedan MT USDM 2018 Subaru WRX STI Sedan MT ADM 2018 Subaru WRX STI Sedan MT USDM 2018 Subaru WRX STI Type RA Sedan MT USDM 2019 Subaru WRX STI S209 Sedan MT USDM 2019 Subaru WRX STI Sedan MT ADM 2019 Subaru WRX STI Sedan MT USDM 2020 Subaru WRX STI Sedan MT ADM 2020 Subaru WRX STI Sedan MT USDM 2021 Subaru WRX STI Sedan MT ADM 2021 Subaru WRX STI Sedan MT USDM
