Volkswagen Accessport and Accesstuner Updates – New OTS Maps, Monitors, Accesstuner Tables

Volkswagen_MKVIGTI_2012-2014_SyedAhmadAl-Qudree_3

In an effort to offer the most comprehensive tuning solution available for the Mk6 Volkswagen GTI, we are excited to announce our first major update to Accessport firmware, Accesstuner, and Off The Shelf Maps for the 2010-2014 Volkswagen GTI.

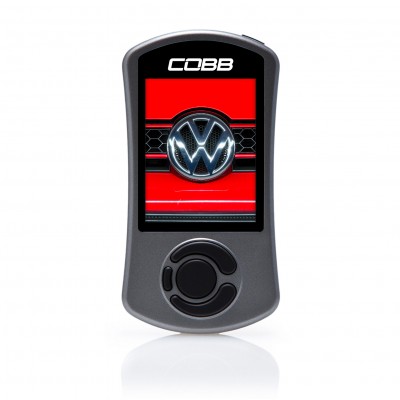

accessport_v3_volkswagen

Accessport Firmware Updates (1.7.3.0-12306)

Firmware updates to the AP3-VLK-001 Accessport consists of new Off The Shelf Maps and various updates to Monitors available for live viewing and data logging.

V102 Off The Shelf Maps

While calibration data in the v102 maps remains the same, there are some minor updates to all map files including minor bugs in descriptions and correcting torque reduction requests on the 115AS ROM.   A complete list of changes can be found on the Map Notes Page.

Map Files Available:

  • Anti-Theft Mode v100.ptm
  • Stage0 v100.ptm
  • Stage1 91 High Boost v102.ptm
  • Stage1 91 v102.ptm
  • Stage1 93 High Boost v102.ptm
  • Stage1 93 v102.ptm
  • Stage1+ 91 v102.ptm
  • Stage1+ 93 v102.ptm
  • Stage2 91 v102.ptm
  • Stage2 93 v102.ptm
  • Valet Mode v100.ptm
Accessport Monitor Updates
  • Additional monitor conversion support
    • “Torque (Actual)” now converts from nm to ft-lbs
    • “Rail Pressure” now converts from MpA to PSI
    • “Airflow Rate (Nominal)” now coverts from dm3/s to ft3/m (CFM)
    • “Fuel Flow” now coverts from ML/s to G/m
  • New Monitors:
    • “Pre-Throttle Boost Pressure”
    • “EGR Filling”
    • “EGR Pressure”
    • “Filling to Pressure Factor”
    • “WGDC PID Result”
    • “WG CAN Target Pressure Ratio”
  • Other Updates:
    • Added “AFR Commanded” (Final)
    • Updated AFR monitors precision from 3 to 2, changed name of “Target Boost” to “Target Manifold Boost”.
    • The Boost Monitor is now based off of Pre-Throttle Boost Pressure for improved accuracy.
      • Note: vaccum pressure is no longer displayed. See monitor description for more details.
    • Boost Error monitor corrected to display correct value.
    • “WG I Factor” & “WG P Factor” monitors corrected to display the correct value.
    • Removed superfluous monitors: “Target Boost Pressure (Filtered)” and “Target Boost Ratio”

For a complete list of Volkswagen Monitors, see the Volkswagen Mk6 Monitor List.


ATP-VLK_main

Accesstuner Pro Updates (1.9.1.0-12372)

New Tables
  • Wastegate Duty Cycle Control:
    • Added WGDC System diagram to Volkswagen Mk6 Tuning Guide
    • Table Additions:
      • Overboost Detection Time (TDPVDKNG)
      • “Wastegate Duty Ambient Pressure Correction”
      • Minimum I-component (IREGMIN)
      • Maximum I-component (IREGMAX)
      • Wastegate Duty Cycle Output Table (KFTVPWG1Q)
      • Misc: Removed WGDC Feed Forward tables
  • HPFP Table Support:
    • Table Additions:
      • HPFP Displacement Volume (VHDP)
      • Radius of HPFP Piston (RQUAHDPK)
  • Injection Timing:
    • Table Additions:
      • Injection Scaling (KRKATE)
      • Injection End Angle 1 (KFWEHK2K1)
      • Injection End Angle 2 (KFWEHP2K1)
      • Injection Start Angle 1 (KFWBHO1SLE)
      • Injection Start Angle 2 (KFWBHO1SWE)
      • Injection Start Angle 3 (KFWBHO1SS)
      • Injection Start Angle 4 (KFWBHO1SWS)
      • Maximum Injection Angle Intake Stroke (KFWBHO1SMX)
      • Offset Angle Correction EOI (KFWESABGRM)
Monitor Updates
  • Additional monitor conversion support
    • “Torque (Actual)” now converts from nm to ft-lbs
    • “Rail Pressure” now converts from MpA to PSI
    • “Airflow Rate (Nominal)” now coverts from dm3/s to ft3/m (CFM)
    • “Fuel Flow” now coverts from ML/s to G/m
  • New Monitors:
    • “Pre-Throttle Boost Pressure”
    • “EGR Filling”
    • “EGR Pressure”
    • “Filling to Pressure Factor”
    • “WGDC PID Result”
    • “WG CAN Target Pressure Ratio”
  • Other Updates:
    • Added “AFR Commanded” (Final)
    • Updated AFR monitors precision from 3 to 2, changed name of “Target Boost” to “Target Manifold Boost”.
    • The Boost Monitor is now based off of Pre-Throttle Boost Pressure for improved accuracy.
      • Note: vaccum pressure is no longer displayed. See monitor description for more details.
    • Boost Error monitor corrected to display correct value.
    • “WG I Factor” & “WG P Factor” monitors corrected to display the correct value.
    • Removed superfluous monitors: “Target Boost Pressure (Filtered)” and “Target Boost Ratio”
Miscellaneous Improvements

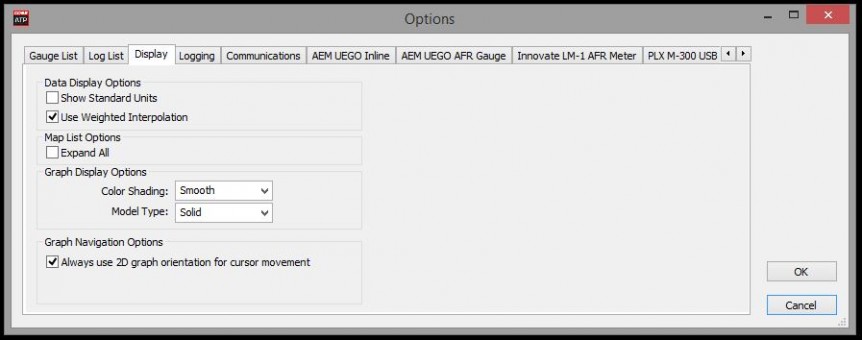

Added unit conversion support for monitors in Accesstuner.  This can be found by browsing to the “Display” tab under the Configure Options menu option.

standard_units_vw
