2019+ F-150 Limited Support Now Available

Ford F150 Limited_2019_COBB_-3

The 2019+ Ford F-150 Limited features a twin-turbocharged 3.5L High Output Ecoboost V-6.  COBB has plenty of experience with this specific drivetrain as it also comes in the Gen 2 Raptor.  This is a very capable platform in a stock configuration, but after some COBB magic, the F-150 Limited becomes a whole new beast!  Whether you’re taking your Limited to the backcountry, cruising the streets, or just crawling the mall, the COBB Tuning Accessport offers performance gains that improve your truck for any situation.


What is an Accessport?

accessport_v3_ford_f150



The Accessport is the world’s best selling, most flexible, and easiest to use ECU tuning solution for your 2019+ F-150 Limited.   It allows you to increase power by replacing conservative factory settings with more aggressive calibrations, and more!  The Accessport is in-cabin mountable and has a large, full color, high-resolution screen which allows you to monitor up to six parameters in real time.  It is fully customizable from the look (multiple bezel colors), layout (set up race, street, or dyno gauge clusters), and mounting options (choose from 1,000s of standard vehicle mounts).


Off The Shelf Maps

The COBB Accessport easily installs in minutes and comes pre-loaded with several options for Off The Shelf ECU maps.  These maps cover varying octane fuels and offer performance gains for trucks ranging from stock to full bolt-ons.  If you want more advanced modifications outside the normal upgrade path, there is a large network of Protuners that can use the Accessport and Accesstuner Pro software to create a custom tune for any modification level.  Whether you decide to follow our staged upgrade path with pre-loaded Off The Shelf (OTS) maps or use custom mapping for an advanced build, the Accessport is the only engine management solution you’ll ever need.

Stage1

Raptor Stage 1 93

  • Intake Requirements: Stock airbox with stock/COBB air filter.
    • Optional: COBB SF Intake
  • Intercooler requirements: Stock intercooler.
  • Exhaust requirements: Stock exhaust.
  • Boost: Dynamic based upon atmospheric conditions, fuel quality, gear, rpm, and drivetrain.
    • Fuel Octane 87 (91 RON) Minimum Up to ~17psi +/- 3psi tapering to ~14psi by redline.
    • Fuel Octane 91 (95 RON) Minimum Up to ~22psi +/- 3psi tapering to ~15psi by redline.
    • Fuel Octane 93 (98 RON) Minimum Up to ~22psi +/- 3psi tapering to ~15psi by redline.

Stage2

Raptor Stage 2 93

  • Intake Requirements: Stock airbox with stock/COBB air filter.
    • Optional: COBB SF Intake
  • Intercooler requirements: COBB FMIC.
  • Exhaust requirements: Stock exhaust.
    • Optional: COBB Gesi Catted Downpipes
  • Boost: Dynamic based upon atmospheric conditions, fuel quality, gear, rpm, and drivetrain.
    • Fuel Octane 87 (91 RON) Minimum Up to ~17psi +/- 3psi tapering to ~14psi by redline.
    • Fuel Octane 91 (95 RON) Minimum Up to ~23psi +/- 3psi tapering to ~16psi by redline.
    • Fuel Octane 93 (98 RON) Minimum Up to ~23psi +/- 3psi tapering to ~16psi by redline.

These maps come preloaded and are also available via a simple download or firmware update at no additional cost.  If you install modifications outside the scope of the Off The Shelf maps, compatible maps can be created via custom tuning though a massive COBB Protuner network.  For more specific information about our OTS Maps, visit the Map Notes Page.

TCM Maps

Transmission Control Module, TCM, maps manipulate the workings of the transmission.  The goal of these maps is to improve transmission behavior overall.  Improve can mean various things depending on your goals.  With that in mind, there are three off the shelf TCM maps to choose from: Simulated Stock, OEM+, and Sport.  These maps can be gained by adding TCM Flashing to your existing Accessport or buying an Accessport with TCM Flashing.

SIMULATED STOCK

The simulated stock maps are a replica of the factory TCM data for the 19+ F-150 Limited.

COBB OEM+

The COBB OEM+ map is intended to be a sporty but refined improvement on the stock transmission behavior.

  • Shift Points: Details shown below.
  • Shift Firmness: moderately increased shift firmness during high-power, high-RPM shifts in ‘Normal’ and ‘Sport’ drive modes.
  • Upshift Backout: upshift inhibit (zero APP gear-holding) in ‘Sport’ mode following high-power acceleration and throttle backout has been disabled. Stock behavior would inhibit upshift until pedal position is re-applied above ~10%.  Instead of this holding the gear and maintaining a high RPM, an upshift will occur for a smoother driving experience.
  • Torque Limits: increased torque limits for more aggressive launches and acceleration.

COBB SPORT

The COBB Sport map is intended to be a performance-first improvement on the stock transmission behavior.

  • Shift Points: Details shown below.
  • Shift Firmness: increased shift firmness during moderate to high-power shifts in ‘Normal’ and ‘Sport’ drive modes.
  • Upshift Backout: upshift inhibit (zero APP gear-holding) in ‘Sport’ mode following high-power acceleration and throttle backout has been disabled. Stock behavior would inhibit upshift until pedal position is re-applied above ~10%.  Instead of this holding the gear and maintaining a high RPM, an upshift will occur for a smoother driving experience.
  • Torque Limits: increased torque limits for more aggressive launches and acceleration.
COMPARISON

The factory ECU uses transmission Output Shaft Speed (OSS) for shift schedule tables along with Accelerator Pedal Position (APP).  The graphs below translate the OSS to vehicle speed (assuming stock tire size and diff. gearing) and show the shift schedules based on APP (x-axis) and Vehicle Speed (y-axis).  This allows you to see how shifting behavior operates at a given vehicle speed and throttle input.

Simulated Stock
2019_11_21_11_07_46_GreenshotAL
COBB OEM+
OEMAx
COBB Sport
Sportup

The greatest takeaway from the schedule graphs above are the changes in upshifts.  Shift points are moderately increased for sportier acceleration with the COBB OEM+ map and further increased with the COBB Sport map.  The window for skip shifts is also narrower between for the OEM+ map compared to the Stock map.  For the COBB Sport map, skip shifts are eliminated except for 1 > 3 shifts in low speed and light throttle situations.  There are also more responsive downshift schedules and more anticipatory coastdown (off-power) shift schedules.  This allows smoother driving experience in off throttle situations and when slowing to a stop.

COBB’s performance transmission maps have focused ‘Normal’ and ‘Sport’ drive modes for performance driving and have not been optimized for towing.  Always switch the vehicle’s drive mode to “Tow” mode when hauling a trailer.

All COBB F-150 TCM maps are built for a stock 10R80 with a stock converter and clutch packs.

Tuning is not a replacement for maintenance.  Make sure to follow recommended service procedure intervals.


COBB Custom Features

Aside from the increased performance of the Off The Shelf maps or custom tune, the Accessport has more to offer.  It can be used to read and clear codes, datalog, and measure performance.  There are also several COBB Custom Features included for the Limited F-150 platform.

Auto Start-Stop Adjustment

A common complaint with the F-150 was the bothersome auto start/stop setting.  From the factory, there is no easy way to turn it off and keep it off with subsequent key cycles.  The Accessport’s Auto Start-Stop Adjustment feature accomplishes just that!  With this feature, you can set enable/disable Auto Start-Stop and the setting will be retained even after the vehicle is turned off.  To use this feature go to “Tune” > “Adjustments” > “Auto Start-Stop” > and then select “1” if you want it to be enabled or “0” to disable it as shown below.

image (5) image (4) image (3) image (2) image (1)
Fuel Pump Control

You guessed it!  This feature allows control of the in-tank fuel pump.  This is especially useful if you want to drain the fuel tank to run different fuels, depressurize the fuel system to change injectors, or are needing to drain the fuel tank for any other reason.  To use this feature (see Accessport steps below), with the engine running set the Fuel Pump Control State to -1.  This will turn off the fuel pump and the engine will shut down when the ECU has detected behavior consistent with fuel pressure loss.  At this point, fuel pressure will be low enough to disconnect the fuel line and route it into a container.  Keying ON and setting the Fuel Pump Control State to back to 1 will turn the fuel pump back on which would then drain the fuel tank.

image (5) image (4) image (7) image (6)

Dynamic Pedal Control

This feature is intended to enhance or dull accelerator pedal response.  You can set this value from -5 to 10, with 0 being factory response for whichever Drive Mode the truck is in.  Each reduction from 0 to -5 will decrease pedal response by 20%.  This could be useful if you’re wanting to limit power or fuel consumption. Each increment from 0 to 10 will increase your pedal response by 10%.  This will make the truck feel faster since the actual throttle will open more with less pedal input.  Below is a graphical representation comparing throttle pedal input (x-axis) with the amount the throttle body is opening (y-axis) for each setting.

Raptor Throttle Tables

To access this feature, select Throttle Response from the Adjustments menu as shown below.  The value saved will remain until it is changed through this menu again.  It is persistent through key-cycles and ECU flashes.  This feature is disabled in the Stage 0 (Stock) map file and will default to 3 in standard COBB Off The Shelf Maps.

image (5) image (4) image (10) image (9) image (8)

Valet Mode

Valet Mode can be used to reduce maximum power output by limiting throttle to about 25%.  A value of 1 will enable valet mode.  A value of 0 will return to normal.  This setting will be retained even through key cycles and does not require changing maps!  Below shows how to adjust Valet Mode on the Accessport.

image (5) image (4) image (13) image (12) image (11)

Stage Power Packages

Our engineers rigorously test Hard Parts to find the right order and combination for the best incremental power gains. Maps are created and tested to tune the ECU so that it supports and takes advantage of each part. With these results, COBB is able to create the Upgrade Path of Staged Packages that have all the necessary parts to upgrade your truck.

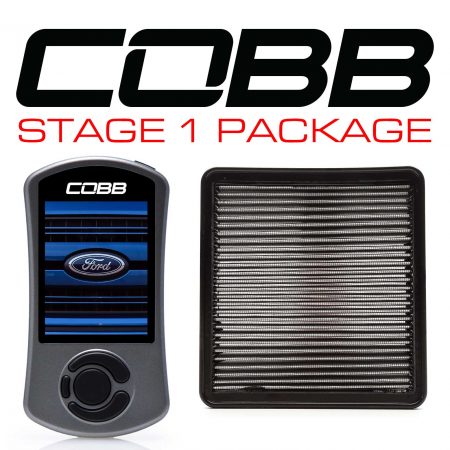

Ford Stage 1 Power Package F-150 Limited 2019+

Ford Stage 1 Power Package F-150 Limited 2019+



Combining the world’s best selling, most flexible ECU upgrade solution along with a high flow filter to increase air flow, COBB brings you the COBB Stage 1 Power Package for your Ford F-150 Limited.  Get the best bang for your buck by treating your vehicle to parts that will increase your power and improve overall driveability.  Nothing but a win/win situation!

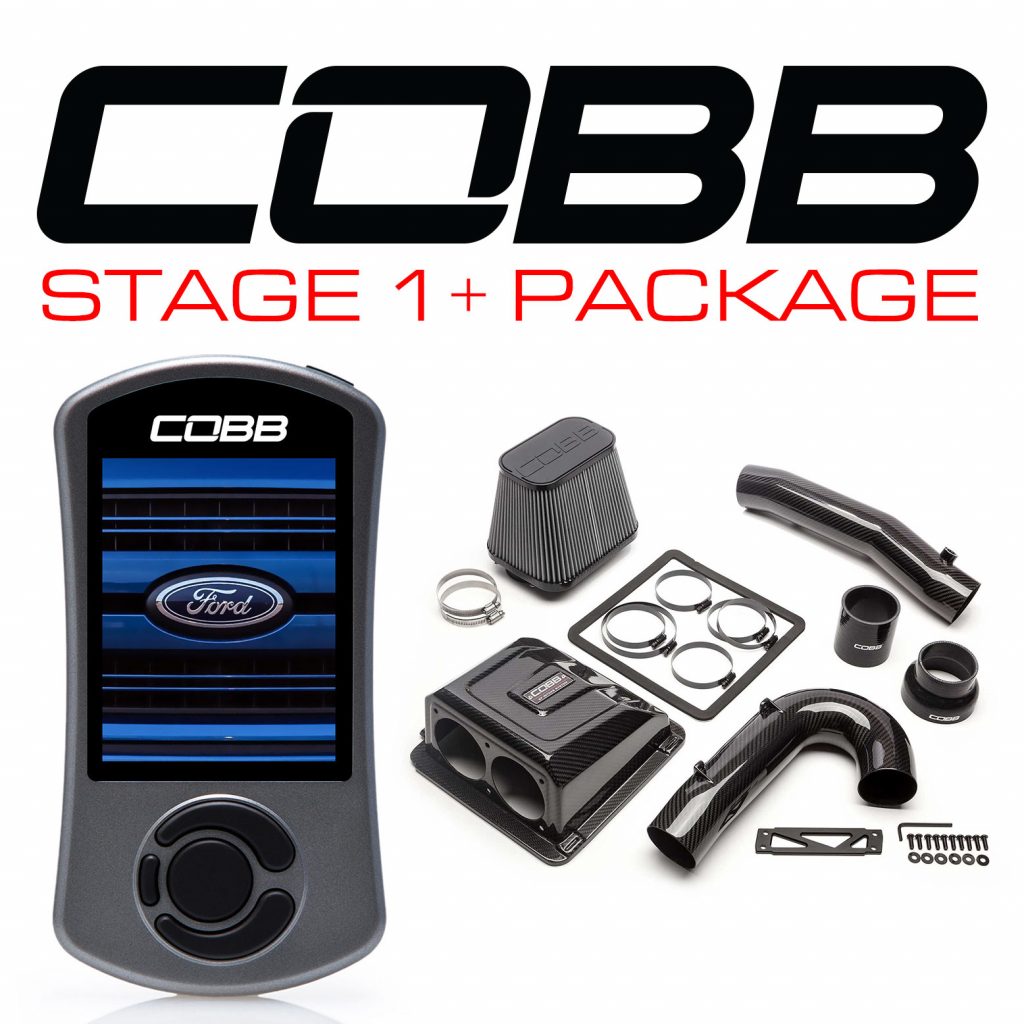

Ford Stage 1+ Power Package F-150 Limited 2019+

Ford Stage 1+ Power Package F-150 Limited 2019+



For those that want to take it a step further, there’s the Stage 1 + Power Package.  This Package includes the Accessport and the COBB Intake System (choice of SF Intake System or Redline Carbon Fiber Intake System).  The addition of our beautiful intake increases induction sound and will make anyone proud to pop their hood.

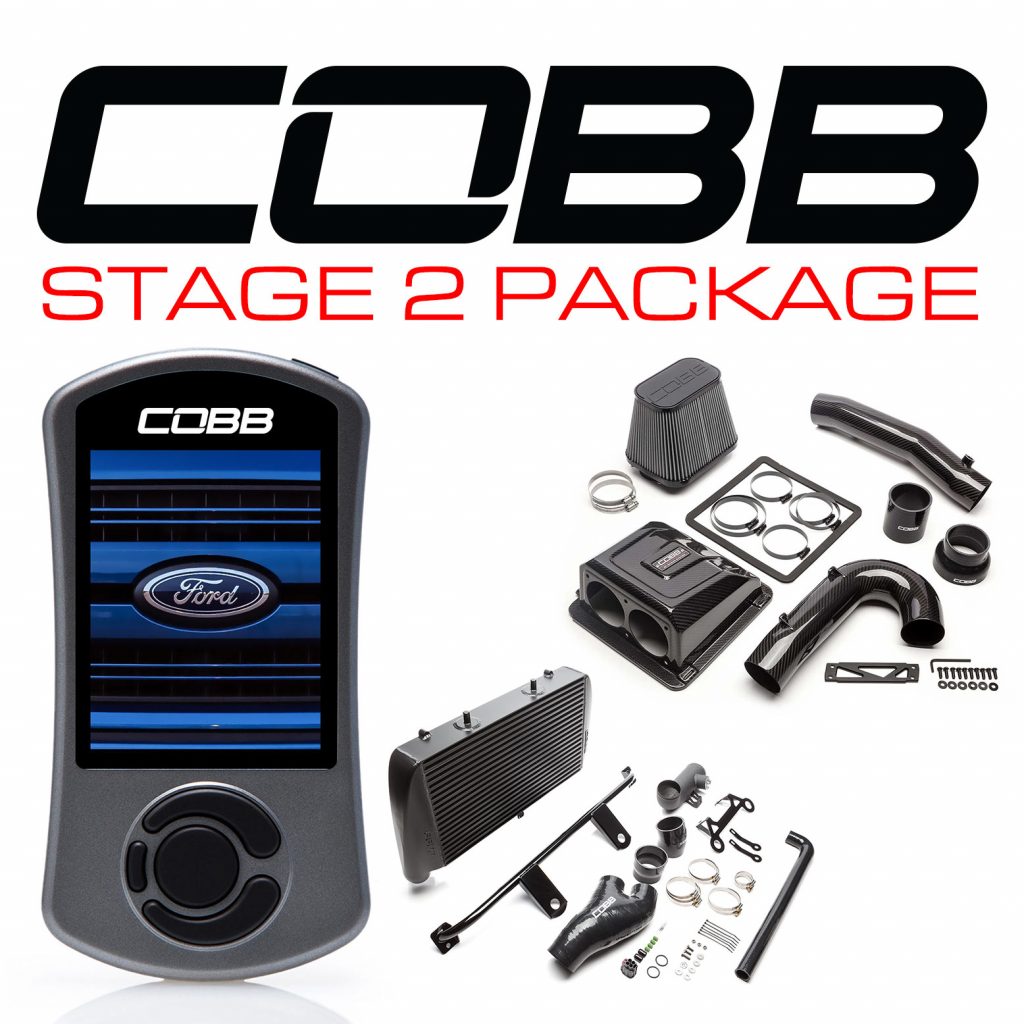

Ford Stage 2 Power Package F-150 Limited 2019+

Ford Stage 2 Power Package F-150 Limited 2019+

The Stage 2 Power Package adds the front mount intercooler (available in black or silver) to the mix.  Efficiency is the name of the game and this intercooler will get the most out of your stock turbos and still has plenty left over for future upgrades to go along with it.


Individual Parts and Accessories

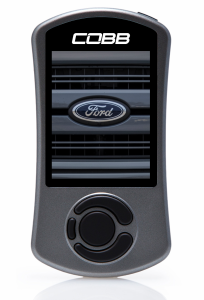

 F-150 Limited Accessport

Accessport

The Accessport is the world’s best selling, most flexible, and easiest to use ECU tuning solution for your 2019+ F-150 Limited.   It allows you to increase power by replacing conservative factory settings with more aggressive calibrations, and more!  The Accessport is in-cabin mountable and has a large, full color, high-resolution screen which allows you to monitor up to six parameters in real time. It is fully customizable from the look (multiple bezel colors), layout (set up race, street, or dyno gauge clusters), and mounting options (choose from 1,000s of standard vehicle mounts).

 7F3100_main (1)

Redline Carbon Intake

The all new Redline Carbon Intake features carbon fiber pieces constructed of a 3k tow in a 2×2 twill weave pattern with a gloss clear coat. Factory piping from the air-box is replaced with 3″ tubing to maximize airflow. A bespoke carbon airbox lid replaces the factory piece and allows installation of our reusable dual-inlet, high flow filter offering 165% additional surface area over stock. Black 4-ply silicone couplers are held in place with black e-coated stainless steel clamps, offering a sleek look and OEM-quality installation.

7F2100_main-768x512

Intake

The COBB Intake for the 2019+ F-150 Limited checks every box that enthusiasts expect from a high quality bolt on upgrade. The restrictive factory piping to the turbos is replaced with twin 3″ mandrel bent aluminum tubing to maximize air flow while custom silicone couplers ensure a perfect OEM-like fitment.  The injection molded – fiber reinforced airbox lid incorporates a closed-cell foam gasket to seal the filter from mud, dirt, and debris. Plus, the powder coated tubing, composite material, and COBB nameplate transform the engine bay to look as sharp as the iconic F-150 exterior.  Combining the improved airbox design with a fancy filter produces a more audible turbo sound when spooling building boost at low RPM.

AMS32080001-1_main

AMS Turbo Inlet Tubes

AMS’ Engineers designed this one of a kind product to have a 222% increase in the cross sectional area at the power robbing bottleneck near the turbo inlets.  This allows the turbos to breathe easier giving them the opportunity to create more power. The Engineers accomplished all of this while still retaining all of the OEM fittings which means no check engine light. There are a lot of airbox options on the market so they took extra measures to make sure our turbo inlet tubes work with your aftermarket OEM style intakes. AMS’ turbo inlet tubes feature an understated appearance that results in an OEM look and feel in your truck’s engine bay. This is a product every 2019+ F-150 Limited owner should have on their truck.

7F2500-SL_main

Intercooler

Combined with an Accessport, upgrading the stock intercooler is a no brainer as the best bang for your buck modification on a 2019+ F-150 Limited. Efficiency is the name of the game and this intercooler will get the most out of your stock turbos and still has plenty left over for future upgrades to go along with it.  It’s also available in a silver or black finish!

8F2600_main

Accessport Mount

Even great things can be improved! Although there are already a few mounting options offered for the 2019+ F-150 Limited none of them are as quite robust as this! Regardless of the terrain or workout you’re putting your Limited through, you can hoon assured the Accessport will stay in place. The mount fastens to the A-pillar which offers a solid mounting point. This location is in an ideal line of sight over the top left of the steering wheel but out of the way of the air vent, cluster, and windshield.

8F1700_main

Redline Carbon Overflow Cover

Constructed of a 3k tow in a 2×2 twill weave pattern carbon fiber with a gloss clear coat to perfectly match the COBB Redline Carbon Fiber Intake System. A classy black anodized COBB Redline badge sits atop. This cover utilizes existing hardware and installs in mere minutes with simple hand tools.

8F1600_main

Coolant Overflow Cover

Aside from disguising the unattractive factory reservoir. This cover is made of high-quality materials and is expertly fabricated to handle the abuse that an F-150 Limited can take… and look good doing it.

COBBWT44697-1-3_main

WeatherTech Floor Liners

These floorLiners are laser measured to protect the front, back and even up the sides of your vehicles footwell. For ultimate strength and dependability, FloorLiners feature high-density core materials and are engineered with advanced surfacing that carries messes away from shoes and clothing. WeatherTech products provide complete automotive interior carpet protection from mud, dirt, snow and more.

Co-Filter-Sock_main

Filter Sock

Whether you’re taking your 2019+ F-150 Limited to the back country, sand dunes, or fireroads, exploring off road terrain can lead to a very gritty air filter. Use the COBB air filter sock to prevent that grit from entering the system.

FOR-006-100_main

Intake Replacement Filter

The filter element that originally came with your COBB Intake system is cleanable and can be reused for the life of your truck. However, should your filter element become damaged, this is the replacement part. It will last the life of your truck and can be cleaned and oiled for optimum long term performance.

8F3650_main Turbo Blanket

The COBB Turbo Blanket is designed to limit the amount of heat that is transferred from your turbocharger to your engine bay as well as keeping hotter exhaust gases that exit the system faster through decreased density. By limiting the amount of transferred heat, you extend the life of your under hood components, decrease intake temps, and improve the response from your truck. Constructed with a fragmentized fire retardant volcanic rock outer layer (Rated 1500°F Direct Heat / 1800°F Radiant Heat) and internally insulated with high temperature calcium magnesium silicate wool (Rated 1800°F Direct Heat / 2300°F Peak Heat).

8F3675_main 2″ Hitch Receiver D-Ring Shackle

The COBB 2″ Receiver w/ D-Ring Shackle consists of a billet 6061-T6 aluminum body and forged steel screw-pin shackle rated to 9500lb Working Load Limit (WLL). The aluminum body is powder coated in a crystal grey and features 2 o-rings to prevent rattle while installed. The d-ring is coated in a zinc plating to protect from corrosion.

8F3600-GRY_main Universal Hitch Cover

The COBB Universal Hitch Cover provides a finished aesthetic to a typically neglected area of your truck. The 6061-T6 aluminum constructed hitch cover features multiple pin pitches allowing it to be compatible with several manufacturer hitches. It also includes 2 o-rings to prevent any rattle between the body and hitch. The COBB logo is displayed prominently across the center and comes in your choice of powdercoat finish options between tinted clear and crystal gray. The hitch cover is 2″ and fits most class 3 and 4 receivers.

Co-Hitch-Lock_main 5/8 Hitch Lock

The COBB 5/8 Hitch Lock can prevent your decorative hitch cover (or anything else in your receiver with a 5/8s hole) from getting hitched to someone else’s ride. It is made from durable carbon steel and finished in black powdercoating to prevent corrosion. Two keys are included.
