Ford Updates – Focus ST and Fiesta ST v501 Maps

Warren's Fiesta ST Day 3 copyr

An update for the Focus and Fiesta ST platforms is now available.  This update includes v501 maps which contain minor feature improvements and bug fixes from the previous release.  Also included is an update for the Accesstuner software which addresses bugs and simplifies features.

Version

AP3-FOR-001: 1.7.3.0-14467

Improvements

Reverted the “Gear Shift Hang” change from v500. (Fiesta ST only)

Enabled Fast Flash Capability – Map changes should now be quicker within the same generation maps.  Example: Gen1 v401 reflash, followed by Gen1 map revision. Gen2 v501 reflash, followed by Gen2 map revision. Changing between Gen1 to Gen2 maps will require a full flash.

Focus ST V501 MapsMap Notes
Anti-Theft Mode v501.ptm
Stage0 v501.ptm
Stage1 87 OCT or 89 RON v501.ptm
Stage1 91 OCT or 95 RON v501.ptm
Stage1 93 OCT or 98 RON v501.ptm
Stage2 91 OCT or 95 RON v501.ptm
Stage2 93 OCT or 98 RON v501.ptm
Stage3 91 OCT or 95 RON v501.ptm
Stage3 93 OCT or 98 RON v501.ptm
Valet Mode v501.ptm

Fiesta ST V501 MapsMap Notes
Anti-Theft Mode v501.ptm
Stage0 v501.ptm
Stage1 91 OCT or 95 RON v501.ptm
Stage1 93 OCT or 98 RON v501.ptm
Stage2 91 OCT or 95 RON v501.ptm
Stage2 93 OCT or 98 RON v501.ptm
Stage3 91 OCT or 95 RON v501.ptm
Stage3 93 OCT or 98 RON v501.ptm
Valet Mode v501.ptm

New MonitorsFord Monitor List
EOI Actual – Actual End of Injection for the current effective intake pulse in degrees before top dead center.

Bug Fix
Fixed an issue for vehicles that may have exhibited a “P061A” code (Fiesta ST only)

Accesstuner Updates

Version

Accesstuner – 1.9.1.0-14467

Improvements

CCF RPM Feature Simplification

  • Simplified configuration for LC. LC Master Switch will now auto-enable 5-way Hard/Soft limiters where supported.
  • Removed LC Hotswap “Offset” tables and switch. LC Hotswap no longer requires this component and is automatically handled.
  • Simplified configuration for FFS. FFS Master Switch will now auto-enable 5way FFS limiters.
  • Simplified configuration for Driving Limiter. Switch removed, 5-way always active.

Added familiar “Switchable Map X” to CCF Map Switching Sub Folders

Restored (read-only) vehicles to full functionality, renamed to (CCF Gen1)

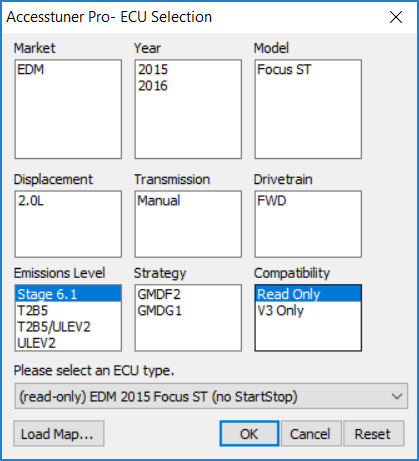

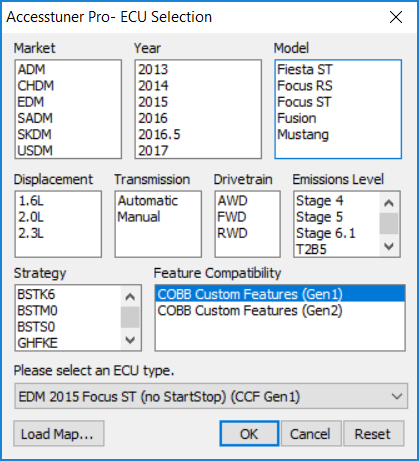

1.9.1.0-14404 (Old) 1.9.1.0-14467 (New)
ford_gen1 ford_gen1 (2)

All vehicles supporting the latest Realtime and Speed Density features are labeled (CCF Gen2)

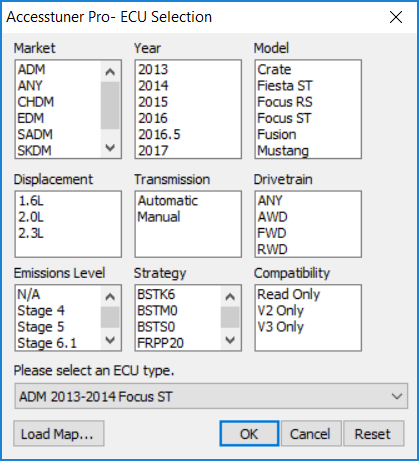

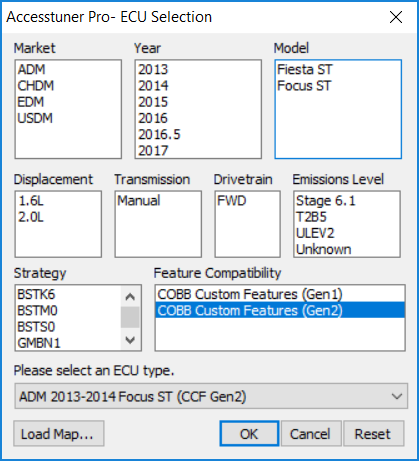

1.9.1.0-14404 (Old) 1.9.1.0-14467 (New)
 14401_no_gen2_label  ford_gen2



Added “Copy Tables” functionality to CCF Gen2 vehicles
See Ford COBB Custom Features – Accesstuner Definition Upgrade Strategy

New MonitorsFord Monitor List
EOI Actual – Actual End of Injection for the current effective intake pulse in degrees before top dead center.

Bug Fix

Fixed an issue that prevented (CCF) 2D and 3D tables from initializing from default map slots greater than 1
Bug applies to maps saved by 1.9.1.0-14401 with the latest “COBB Custom Features (Gen2)” strategy.  To apply bug fix, simply open and re-save any impacted map in 1.9.1.0-14467.


0 responses to “Ford Updates – Focus ST and Fiesta ST v501 Maps”

  1. Hey Kyle,
    The FiestaST issue where the cruise control up/down buttons remain active for on-the-fly map switching when cruise control is on and active has returned with this update. Please check it out.
    Thanks!

    • Hey there! We were not able to duplicate this bug on internal vehicles. If you can email the exact issues you’re encountering to [email protected] we’ll see if something else may be going on. You may be seeing the CC lower MPH limit at play which prevents CC from being enabled below a certain speed threshold.

      Marshall@COBB
